Dry Syrup Powder Filling Machine

Automatic 12 Head or 16 /24 Head Rotary Dry Syrup Powder Filling Machine with fill range up to 30gms. Or up to 65gms.

Automatic 12 Head or 16 Head Rotary Dry Syrup Powder Filling Machine with fill range

Description

The Automatic High Speed Rotary Dry Syrup Powder Filling Machine Model SBPF-120R is suitable pharma Dry suspension powder filler to Glass, Plastic, PET, HDPE, and LDPE Bottles with maximum speed of 120 Bottles per minute depending on Powder Fill Volume, auger base, Type of Powder, Bottle Diameter and Bottle Neck Diameter.

Dry Powder filler Machine in Stainless Steel Finish with heavy duty frame structure with Stainless Steel Clading for main body with heavy duty assembly . All parts coming in contact with Dry syrup Powders are made from SS316 Materials as well as HDPE Funnels.

The Dry Syrup powder Machine works with Vacuum and Air Systems / Servo Auger base powder filler unit to Fill powder in Bottle with high speed and higher filling accuracy. Dry Syrup powder Machine with Bottle Lifting and Neck Holding system avoid and minimum spillage of powder on bottle shoulder, neck and body keeps bottle clean and also avoid wastage of powder during filling operations.

Dry Syrup powder filler line Machine with complete synchronization of Bottle In-feed feed worm , Star Wheel, Powder Wheel movement and out feed Star wheel for smoother operation. Dry Powder syrup filling line Machine with Rotary Bottle Moving system ensures smooth high speed powder filing through independent moving funnel along with bottles for super greater speed and High performance without compromising speed and fill accuracy. Dry Powder filler Machines with unique vibratory system inside the funnel helps filling of semi free flow type powder at higher speed.

























































Model - Rotary Dry Syrup Powder filler , Dry Syrup powder filling machine with vaccum / auger dry syrup rotary powder filling line
Bottle Diameter Up to 90mm round, Square or Rectangular bottles can be used
Bottle Height 165mm* Maximum
Fill Range 5gms. To 500gms. In Single Dose with the help of change parts for different fill volume / Auger base filler
Fill Accuracy +/- 2% Depending upon the Powder, under the controlled level of Humidity
Humidity Below 30% RH required on machine to be arrange by customer
Electrical 3 Phase and 220 Voltage Single Phase Power Supply (50/ 60 Hz) with A.C. Drive
Power 2.0 H.P. For Machine and 3.0 H.P. For Vacuum Pump / Auger servo / Dust collection
Compressed Air Filtered, Oil Free 2.5kg/cm2 provided by customers
Vacuum  500 LPM, provided by Customers , 800LPM recommended by SHREE BHAGWATI
Conveyor Height 775-950 mm
Overall Dimensions 2500 mm (L) x 1215 mm (W) x 1800 mm - approx
Speed Maximum up to  120 Bottles per minute depending on Bottle Size, Bottle Neck Diameter, Type of Powder and Fill Volume

* Depends on Container size & container characteristics.

** We can supply as per customer requirements.


Salient Features



  • No Bottle - No Fill System

  • Rotary Bottle Movement System with Rotary Funnel System

  • Funnel with Unique Vibratory system for filling semi free flow powder at higher speed

  • All contact parts with easy removal system for Cleaning / Auto Claving / Sterilization

  • Machine construction in SS304 material

  • Filling Accuracy of +/- 1 to 2% depending on powder at controlled humidity below 30% Rh

  • Automatic Infeed and Exit of Bottles through Star Wheel System

  • No Bottle at infeed conveyor - Automatic Machine on/off system

  • Low Air - Machine Stop System

  • Low Vacuum - Machine Stop System

  • Toughened Glass Safety Cabinet

  • Blower for dust extraction


Photos

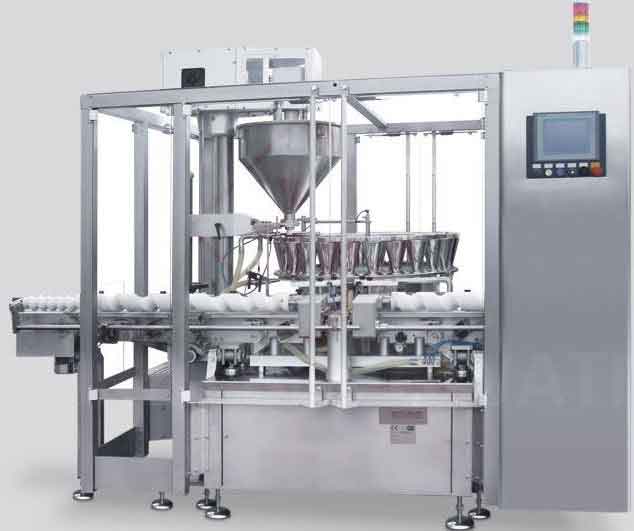

Rotary Dry Syrup Powder Filling Machine
