Bottle foaming Liquid Filling Machine is User Friendly, compact, versatile Volumetric type Liquid Filling Machine , Also Optional rotary turn tables for bulk bottle manually loading at In-feed and Out-feed with Separate Variable drives to matching the speed of incoming bottle and outgoing for smoother operations. Our machines use widely been used in Cleaning Liquid, chemicals and foaming detergent and oil manufacturing Industry. Our filling with diving nozzle for filling the containers that minimum foaming during filling operation.
Volumetric filling systems concept best Suitable for Phenyl Bottle Filling Machine, Floor Cleaner Filling Machine Liquid Soap,Glass Cleaner,Floor Cleaner,Foaming Liquid Filling Line With Filler Capper inline and rotary With Speed up to 120 Bottles per minute depending on Fill Volume, type of Liquid and Bottle Size Application: Cleaner bottle, Filling Liquor, Mouth wash, Liquid Detergents, Glass Cleaner, Kitchen Cleaner, Oil ,Sanitize, phenyl (phenol) , Liquid Hand Wash many more product , Shree Bhagwati Provide complated end to end solution from Single Window inlcuding rotary feeder , filling, capping , induction and labeling , Shrink Sleeve applicator line and conveying systems and final group Shrink Packaging machine also provided Oil Filling, Edible Oil Filling, Lubricant Oil filling, Coconut Oil Filling, Cooking Oil filling, Mustard Oil Filling Machine and line with Two, Four , Six, Eight Nozzle filling line stranded demand in Industry , we offer up to 24 head filling line for high speed production.
Specification of the equipment machine’s basics :
PARTICULAR |
SPECIFICATION |
---|
Machine Name |
Automatic Volumetric Liquid Filling Machine |
Production Speed Per Hour |
1000 to 1200 containers per hour Speed Depends upon the Number of Filling Heads, Liquid Foaming Nature, Filling Volume, Neck Size) |
Number of Filling Heads |
2 Heads |
Working Direction |
Left to Right - Linear |
Filling System |
Volumetric Syringe Based |
Suitable for Products |
Free Flowing Liquids |
Suitable for Packing Material |
HDPE / PET / GLASS / METAL TIN / Aluminum Bottles |
Application |
Filling Liquids in to the Bottles /Containers |
Volume Capacity (Range of Syringe) |
5ml to 1000 ml with help of change parts |
Volume Adjustment |
With the Help of Volume Adjustment Block |
Suck Back System |
NRV Based / Drip Free Nozzles |
Up Down Movement |
Mechanical (Cam Based) |
Filling Volume Accuracy |
+/-1 % |
Working Height |
860mm ( +/-50 mm) |
Machine Weight |
Approx 300 Kgs |
Machine Dimension |
Approx 6 (L) x 5 (W) x 6 (H) – in Feet |
No Bottle – No Filling |
With the help of Sensor |
Bottle Stopper |
Pneumatic Based |
Machine’s material of construction :
Machine main base frame |
Mild Steel Angles |
Machine Coverings |
Complete in S.S. 304 |
Product Contact Parts |
Stainless Steel 316 |
Non Contact Parts |
Stainless Steel / Mild Steel / Aluminum / Teflon (Whichever is applicable) |
Conveyor |
Stainless Steel 304 |
Conveyor Guide |
Stainless Steel 304 Rod (10mm Round Bar) |
Slat Chain Size |
97mm, Pitch - 3.5”, Stainless Steel 304 |
Slat Chain thickness |
3mm |
Conveyor Motor |
0.5 HP 1440 RPM Bonfiglioli |
Pulley |
3 Step |
Bearings |
SKF / Nachi (USA) / Timken (USA) |
Plating(Wherever Applicable) |
Zinc / Hard Chrome / Blackening |
In let & Out Let Pipes |
Braded Hose Pipes |
By-Pass Pipes |
Silicon Pipes |
Material Collection Tray at the bottom of Conveyor |
Stainless Steel 304 |
Main Chain Sprocket |
Duplex |
Emergency Stop |
Emergency push button on conveyor |
Machine’s electronics & pneumatics components :
Machine Motor Make |
1 HP 1440 RPM Pushpak (Customerised) |
Machine Gearbox Make |
Ambica (Customerised) Ratio: 50:1 |
Conveyor Motor Make |
0.5 HP Bonfiglioli |
Conveyor Gear Box Make |
Bonfiglioli Ratio: 50:1 |
VFD Make |
Delta / ABB |
Electrical Wiring |
Ferrule Numbering on all the wires with Proper Markings |
Electrical Components |
ABB / Delta /Spectra |
Sensors |
Leuze /Sick / Panasonic |
Proxy |
Autonix / Pulset |
Operating Panel |
Relay Card (Push Button Type ) |
Pneumatics |
SMC / Festo / Janatics |
Air Pipes |
SMC / Festo / Janatics |
Wires & Cables |
Labb |
Machine’s power & air consumption requirement
Power |
1.5 H.P / 230 V.AC |
Phase |
Single Phase |
Compressed Air Required |
6 bar pressure 0.5 CFM |
Volumetric filling systems concept best Suitable for Floor Cleaner Filling Machine Liquid Soap,Glass Cleaner,Floor Cleaner,Foaming Liquid Filling Line With Filler Capper inline and rotary With Speed up to 120 Bottles per minute depending on Fill Volume, type of Liquid and Bottle Size Application: Cleaner bottle, Filling Liquor, Mouth wash, Liquid Detergents, Glass Cleaner, Kitchen Cleaner, Oil ,Sanitize, phenyl (phenol) , Liquid Hand Wash many more product , Shree Bhagwati Provide complated end to end solution from Single Window inlcuding rotary feeder , filling, capping , induction and labeling , Shrink Sleeve applicator line and conveying systems and final group Shrink Packaging machine also provided Oil Filling, Edible Oil Filling, Lubricant Oil filling, Coconut Oil Filling, Cooking Oil filling, Mustard Oil Filling Machine and line with Two, Four , Six, Eight Nozzle filling line stranded demand in Industry , we offer up to 24 head filling line for high speed production.
Optional accessories (if required by customer at extra cost)
- Storage Tank / Jacket Sensor
- Stirrer System (for Tank)
- Pneumatic Based Dripping Tray
- Pneumatic Up-Down Movement
- Pneumatic Neck Holding System
- Production Counter
- Stainless Steel By-Pass
- Stainless Steel Flexible Pipes in Case of Hazardous Product
- Flame Proof Motor & Control Panel
- In-Feed Turn Table for Continues Bottle Feeding.
- Pre & Post Nitrogen Flushing System
- Polycarbonate Enclosure in Stainless Steel Structure
- Polycarbonate Enclosure in Stainless Steel Structure
Machine’s utility requirement (customer need to arrange)
- Filling Tank / Storage Tank (Maximum 500 liters nearest to Filling Machine)
- Voltage Stabilizer to control power fluctuation
- Main Electrical Power Input till Machine
- Well Trained Operator for Operating Every Machine
- Un-Skilled Helper to help the Operator.
- Air Compressor

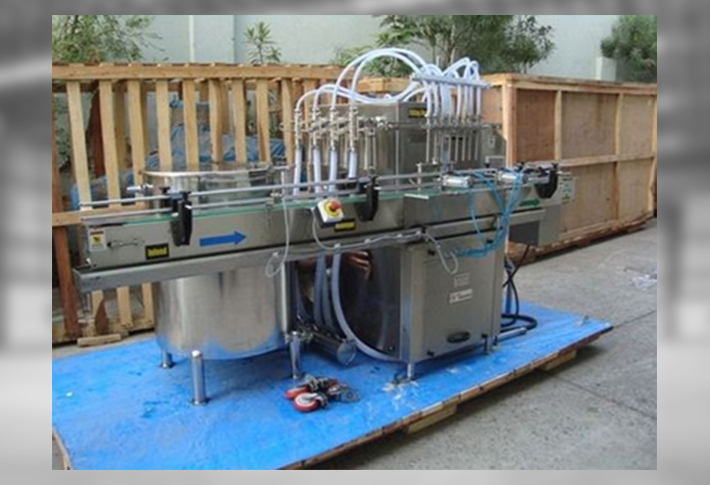

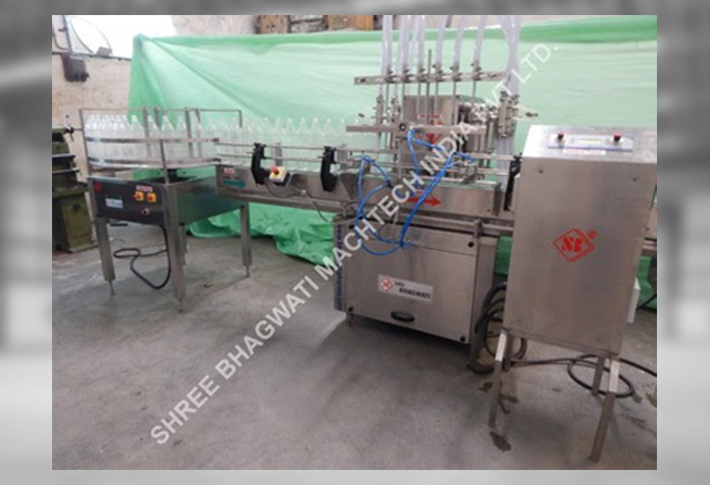

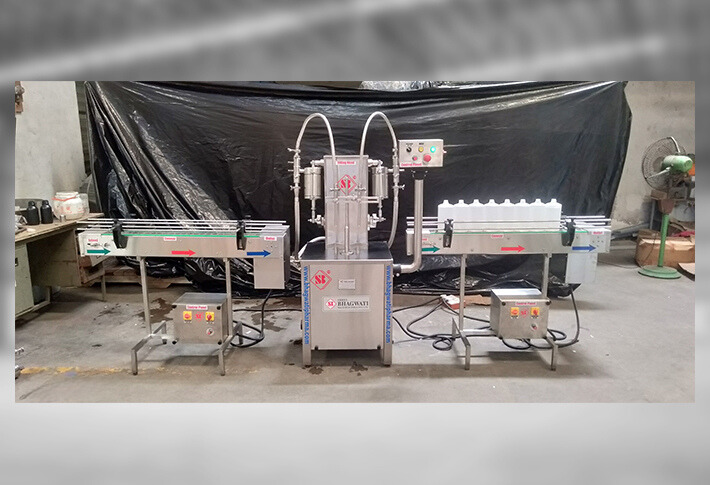

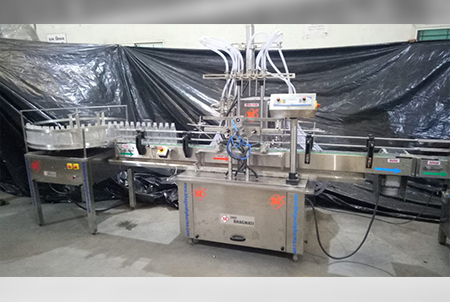

Photos of Volumetric Liquid Filling Machine / Phenyl Bottle Filling Machine
