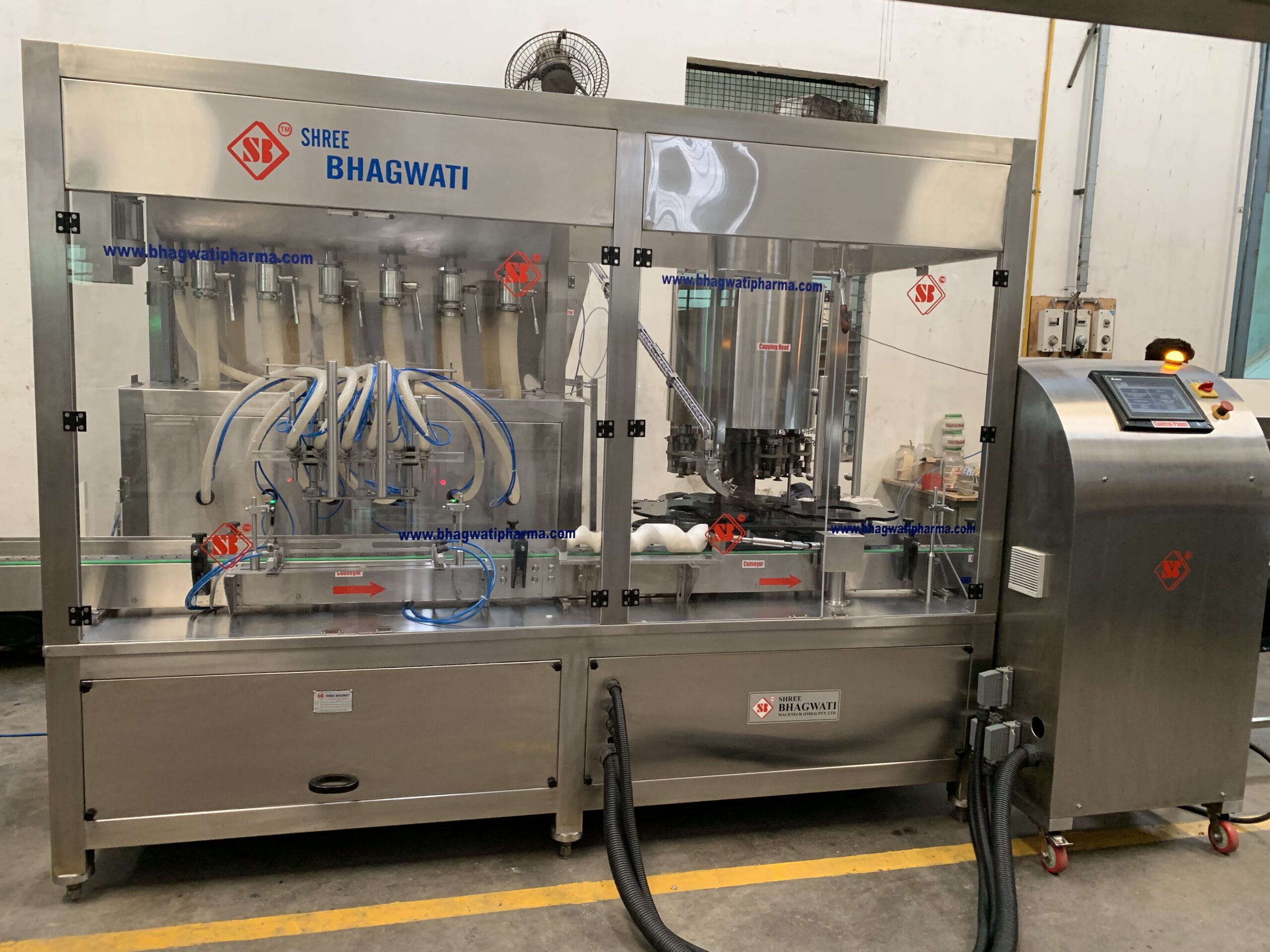

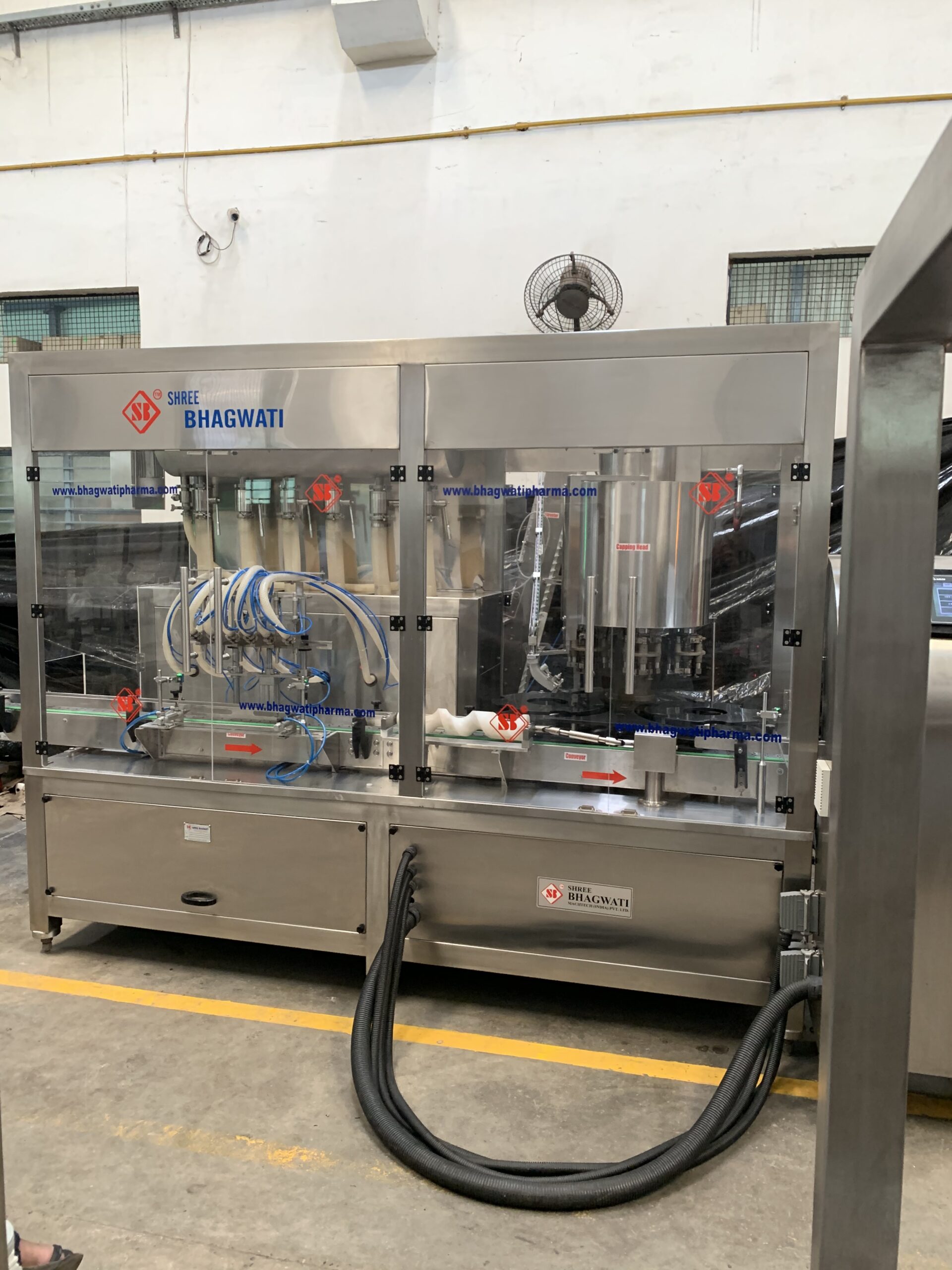

Shree Bhagwati presents its Automatic Monoblock Bottle Filling and Capping Machine, a compact and integrated solution designed for high-speed and precise liquid filling with seamless capping – all within a monoblock design that saves space while enhancing productivity.
This automatic liquid filling machine is engineered to handle a wide variety of bottle shapes including round, oval, flat, and square containers, making it ideal for industries such as pharmaceuticals, cosmetics, nutraceuticals, personal care, and chemicals.
Versatile Filling and Capping in One Compact Unit
The machine combines flow meter-based filling technology with multiple automated capping options, delivering a flexible and efficient packaging solution:
Capping Options Include:
ROPP (Roll-On Pilfer-Proof) Capping
Plastic Screw Capping
CRC (Child Resistant Closure) Capping – Pick and Place Mechanism
This versatility allows the monoblock unit to accommodate various container closure systems and meet the packaging requirements of different products and regulatory standards.
Flow Meter-Based Filling – Smart, Clean, Accurate
At the heart of the machine is an advanced flow meter-controlled filling system that eliminates the need for mechanical volume adjustments. Operators can simply select the desired fill volume using the intuitive HMI touchscreen.
Key Features of Flow Meter Filling:
Tool-less volume changeover directly from the interface
No need for change parts when shifting between fill volumes
Fewer mechanical components in the liquid path, enhancing hygiene and reliability
High accuracy (±1%) for consistent product quality
Built-in CIP (Clean-in-Place) system for effortless sanitation and compliance
Advantages of the Monoblock Bottle Filling Machine
All-in-one unit for synchronized filling and capping
User-friendly touchscreen interface for simplified operation
Fast changeovers between different products and bottle sizes
Automatic bottle infeed and outfeed ensures smooth operation
No Bottle – No Fill & No Cap safety systems
SS316 contact parts and SS304 frame – fully GMP compliant
Rotary movement system for stable and continuous operation
Variable Frequency Drive (VFD) for fine speed control
Technical Specifications at a Glance
| Parameter | Details |
|---|---|
| Production Speed | 60 to 200 bottles/min* |
| Bottle Diameter | 25mm to 85mm* |
| Cap Types Supported | ROPP / Screw / CRC (Pick & Place) |
| Cap Size Range | 18mm to 55mm |
| Filling Volume | 15ml–120ml / 30ml–250ml* |
| Syringe Fill Options | 15ml–120ml / 30ml–250ml / 250ml–500ml* |
| Filling Accuracy | ±1% (based on liquid & single dose) |
| Power Supply | 440VAC, 3-Phase / 220VAC, Single Phase, 50Hz |
| Power Consumption | 2.5 HP |
| Conveyor Height | 850mm – 900mm (adjustable) |
Built for Performance and Compliance
With over two decades of experience in packaging machinery, Shree Bhagwati delivers equipment that meets stringent quality, hygiene, and regulatory standards, making it a trusted choice for FDA and EU GMP manufacturing facilities.
Whether you’re bottling pharmaceutical syrups, oral drops, cosmetic serums, or herbal oils, this automatic monoblock liquid filling and capping machine offers the accuracy, flexibility, and throughput needed to scale production efficiently.
Get in Touch
Looking for a monoblock filling and capping machine manufacturer that understands your industry? Shree Bhagwati offers customizable solutions tailored to your application, bottle types, production volume, and regulatory requirements.
Contact us today to request a quote or schedule a live demo of our automated bottle packaging systems.
