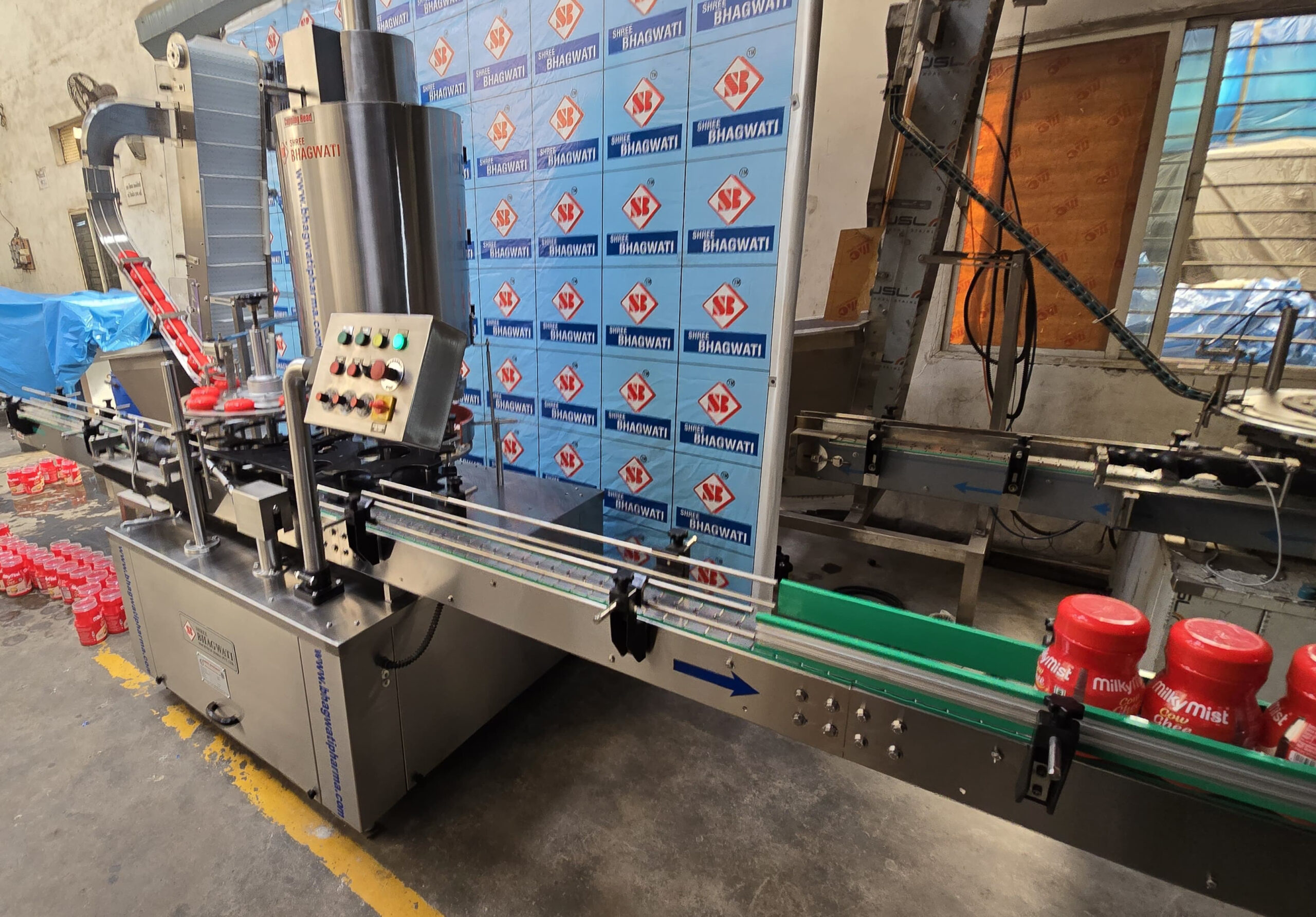

In modern packaging, speed and precision define success. The Automatic Rotary Pick and Place Screw Capping Machine combines advanced engineering, flawless automation, and exceptional reliability to meet the demands of today’s production lines. Designed for high-volume packaging environments, it ensures consistent, air-tight capping of bottles—whether made of glass, PET, HDPE, LDPE, or plastic.
Available in 4-, 6-, 8-, and 12-head configurations, this machine’s flexibility allows it to adapt effortlessly to different production needs, achieving speeds between 50 to 300 bottles per minute, depending on bottle and cap size.
Introduction to the Automatic Rotary Pick and Place Screw Capping Machine
What is an Automatic Rotary Pick and Place Screw Capping Machine?
This advanced rotary system automates the process of picking caps from a feeder and screwing them onto bottles with precision torque control. Unlike conventional cappers, it uses a dual-cam pick and place mechanism—ensuring zero misalignment and perfect torque application every time.
Why Precision Capping is Critical in Modern Packaging
Consistent torque and secure capping are essential to maintain product integrity, safety, and brand image. A loose or cross-threaded cap can cause leakage, contamination, or product spoilage. The Automatic Rotary Pick and Place Screw Capping Machine guarantees uniform sealing and tamper resistance—critical for pharmaceuticals, cosmetics, and food products.
The Engineering Behind the Pick and Place Mechanism
Dual Cam Technology Explained
At the heart of this machine lies its revolutionary dual-cam system:
The first cam picks the screw cap from the star wheel.
The second cam precisely positions and releases the cap onto the bottle.
This two-step process ensures gentle handling, accurate placement, and flawless torque—making it perfect for Child Resistant Cap (CRC) applications where safety and reliability are paramount.
How the Pick and Place System Improves Accuracy
Traditional capping systems often rely on gravity or friction feeding, which can lead to misalignment. The pick-and-place mechanism, however, guarantees 100% alignment and positioning, virtually eliminating capping errors.
Key Features and Innovations
Modular CGMP-Compliant Design
Built under Current Good Manufacturing Practice (CGMP) standards, the machine’s modular structure simplifies maintenance, cleaning, and upgrades while ensuring compliance with hygiene requirements across industries.
Premium SS 304 Construction with Matt Finish
Every contact part is fabricated from high-grade SS 304 stainless steel, providing durability, corrosion resistance, and ease of sanitation. The elegant matt finish enhances appearance and prevents reflection during operation.
Single Motor Synchronization for Smooth Operation
All machine movements—including the conveyor, star wheel, and turret—are synchronized through a single motor system, ensuring seamless coordination, vibration-free motion, and reduced wear.
Safety Mechanisms and Intelligent Detection Systems
Photoelectric sensors detect the presence of caps and bottles.
No Bottle – No Cap system prevents cap wastage.
Mechanical safety clutches and emergency stop buttons provide protection during abnormal conditions.
Outfeed jam detection halts operation automatically to avoid damage or bottle jams.
Magnetic Torque Adjustable Capping Heads
Each capping head is equipped with jaw-type magnetic torque control, enabling precise torque adjustment for consistent, leak-proof sealing. This minimizes cap damage and ensures product integrity.
Multiple Cap Feeding Options
To accommodate various cap types, the system supports multiple feeding methods:
Vibratory feeders
Mechanical orientators
Linear vibrators
Cap elevator feeders
Quick and Tool-Less Changeover
The modular design allows rapid, tool-free changeovers between bottle and cap sizes—enhancing productivity and minimizing downtime.
Technical Specifications and Model Comparison
| Model | Heads | Output Speed (BPM) | Bottle Ø (mm) | Cap Ø (mm) | Power Consumption | Dimensions (L×W×H) | Net Weight |
|---|---|---|---|---|---|---|---|
| SHREE BHAGWATI’S-80 | 4 | 70–80 | 22–80 | 22–52 | 1 HP Main + 0.25 HP Feeder | 1830×850×1500 mm | 275 kg |
| SHREE BHAGWATI’S-120 | 6 | Up to 120 | 22–80 | 22–52 | 1 HP Main + 0.25 HP Feeder | 2130×875×1500 mm | 300 kg |
| SHREE BHAGWATI’S-150 | 8 | Up to 150 | 22–80 | 22–52 | 2 HP Main + 0.5 HP Feeder | 2130×915×1500 mm | 325 kg |
Note: Actual output depends on bottle height, diameter, and cap geometry.
Unmatched Advantages of the Automatic Rotary Pick and Place Screw Capping Machine
Flawless Capping for Every Bottle Type
Whether round, square, or irregular, the system handles bottles of all materials—glass, PET, HDPE, LDPE, and PP—without compromising accuracy.
Enhanced Safety and Reduced Downtime
With clutch protection, photo sensors, and jam detection, operators can rely on uninterrupted production with minimal maintenance issues.
High-Speed, High-Accuracy Operation
The rotary continuous motion and synchronized components allow stable capping speeds up to 150 BPM, ensuring consistent throughput.
Cost-Efficiency and Long-Term Reliability
Durable SS construction, low power consumption, and modular design reduce operational costs while extending service life.
Applications Across Multiple Industries
Pharmaceutical and Nutraceutical Manufacturing
Ensures tamper-proof sealing for tablets, syrups, and supplements—complying with FDA and GMP safety standards.
Cosmetic and Personal Care Products
Ideal for bottles of lotions, serums, creams, shampoos, and conditioners, delivering professional-grade packaging consistency.
Agrochemical, Chemical, and Food Industries
Used for packaging liquid fertilizers, pesticides, sauces, edible oils, and chemical products that require precise sealing and leak prevention.
Understanding the “No Bottle – No Cap” and “Jam Detection” Systems
How These Safety Features Protect Product and Equipment
The No Bottle – No Cap logic ensures that caps are only dispensed when bottles are correctly positioned, reducing cap loss and mechanical wear. Similarly, jam detection stops the machine instantly during obstructions to prevent damage.
Operator Benefits and Production Efficiency
These automated safety features not only protect equipment but also improve uptime, reduce operator fatigue, and enhance production consistency.
Choosing the Right Capping Machine Configuration
Factors: Bottle Size, Cap Type, and Production Speed
When selecting a model, consider:
Bottle height and diameter
Cap shape and material
Desired production speed
Space constraints and power availability
Comparing Multi-Head Capping Systems
For medium-scale operations, the 4- or 6-head models are ideal. High-output facilities benefit from 8- or 12-head configurations, which increase throughput while maintaining precision.
Maintenance and Operation Best Practices
Routine Maintenance and Calibration
Regular inspection of torque heads, sensor calibration, and lubrication ensures consistent performance and extends component life.
Troubleshooting Common Issues
Bottle Misalignment: Check clutch and feed worm alignment.
Cap Slippage: Adjust magnetic torque setting.
Sensor Errors: Clean photo sensors and recheck alignment.
The Future of Automatic Capping Machines
Integration with Smart Packaging Lines and IoT
Future-ready capping machines are now incorporating PLC control, touchscreen HMIs, and IoT connectivity for real-time data analysis, predictive maintenance, and integration with filling and labeling systems.
Sustainability and Energy Efficiency Trends
Manufacturers are adopting energy-efficient drives, lightweight materials, and low-noise motors to minimize environmental impact without sacrificing performance.
Conclusion – Redefining Precision with Rotary Pick and Place Capping Technology
The Automatic Rotary Pick and Place Screw Capping Machine represents the future of packaging automation—where precision meets performance. Its dual-cam design, stainless steel construction, intelligent safety systems, and torque-controlled capping heads ensure unmatched reliability and productivity.
Whether you’re a pharmaceutical company sealing child-proof bottles or a cosmetics manufacturer seeking consistent packaging aesthetics, this machine delivers seamless operation, superior efficiency, and long-term value.
For industries demanding excellence, the Automatic Rotary Pick and Place Screw Capping Machine truly embodies Precision, Performance, and Perfection.
