Shree Bhagwati Group’s Advanced Fluid Bed Processing Technology
Shree Bhagwati Group has introduced cutting-edge Fluid Bed Processing technology, offering efficient solutions for drying, cooling, and agglomeration of particulate materials. Designed to cater to heat-sensitive and non-heat-sensitive products, this technology serves diverse industries such as pharmaceuticals, chemicals, biochemicals, food, and dairy.
Operational Excellence of Fluid Bed Dryer
Fluidized bed dryers are widely used in various industries for drying granular materials efficiently and effectively. To ensure optimal performance and safety, it is essential to follow best practices in operating these dryers.
Fluidized bed dryers operate by passing hot air through a bed of solid particles, causing them to behave like a fluid. This fluidization enhances heat and mass transfer, resulting in rapid and uniform drying of the material. Common applications include drying pharmaceuticals, food products, chemicals, and agricultural commodities.

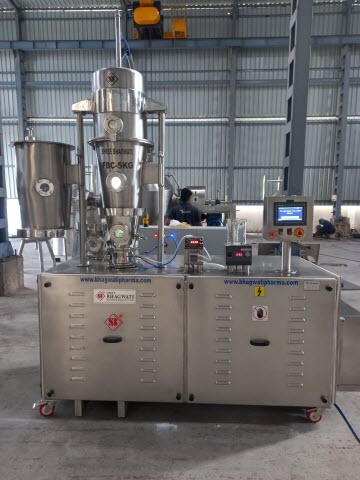

The Fluid Bed Dryer operates by fluidizing solid particles through an upward flow of controlled air via a perforated sheet. This fluidization creates a dynamic bed of particles, facilitating effective mixing and uniform heat distribution. Moisture is evaporated by the heated air, resulting in efficient drying. Simultaneously, fine particles are agglomerated into larger, uniform granules, enhancing product quality and consistency.
Key Features of Fluidized Bed Dryer
- High-Efficiency Drying and Agglomeration:
- Precisely controlled air velocity and temperature ensure uniform drying, exposing the entire surface of the particles to hot air.
- Compliance with cGMP Standards:
- Fully compliant with Current Good Manufacturing Practices (cGMP), ensuring safety and quality for pharmaceutical, chemical, and food applications.
- Premium Material Construction:
- Contact parts constructed from AISI 316 stainless steel and non-contact parts from AISI 304 stainless steel for durability and corrosion resistance.
- Single-piece construction with an integrated retarding expansion chamber and filter bag housing to prevent contamination.
- Advanced Control Systems:
- Equipped with PLC controls and an HMI touchscreen for precise monitoring and automation.
- Automatic temperature regulation for consistent process cycles across batches.
- Enhanced Safety Mechanisms:
- Explosion vents and isolation valves for robust explosion protection.
- Static current control through earthing systems, along with pressure switches to maintain operational safety.
- Emergency stop buttons and overload relay protection for added security.
- Automated Cleaning:
- Integrated Cleaning-in-Place (CIP) system ensures thorough cleaning after every batch, eliminating cross-contamination risks.
- Superior Air Filtration:
- Multi-stage filtration system including Micro, HEPA, and optional steam or electric heat exchangers for clean and efficient air circulation.
Fluid Bed Dryer Salient Features
- Batch Capacities: Available in sizes ranging from 30 kg to 500 kg per batch.
- Pneumatic Sealing: Inflatable silicon rubber seals for the filter bag and product container.
- Explosion Protection: Built-in explosion vents and isolation valves.
- Process Automation: Fully automated controls for temperature and process cycles, with batch records maintained for traceability.
- FDA-Approved Filters: Washable filters for efficient air filtration.
Optional Features of Fluidized Bed Dryer
- Additional product containers for handling multiple batches.
- Advanced PLC systems with enhanced touch screen controls.
- Double Scan AHU with integrated dehumidifiers for precise humidity control.
- Explosion-proof motors and push-button controls for safer operations.
Fluid Bed Dryer Safety Enhancements
- Product Bowl Interlocking: Prevents operational errors during the drying process.
- Explosion Flaps: Protect the system during drying and retarding stages.
- Overload Protection: Ensures system durability and prevents electrical faults.
- Static Safety Measures: Comprehensive earthing systems for static electricity control.
Customizable Add-Ons with Fluid Bed Dryer
- Additional product containers to scale up production.
- Exhaust AHU with high-efficiency filters for superior air handling.
- CIP and WIP systems for automated cleaning and improved operational hygiene.
Fluid Bed Dryer Operating Parameters
Temperature Control
Maintaining precise temperature control is critical for achieving the desired drying rate without causing product degradation. It is essential to monitor and adjust the inlet air temperature according to the material being dried and the desired moisture content.
Airflow Rate
Optimizing the airflow rate through the fluidized bed is essential for efficient drying. Too low airflow can result in uneven drying, while excessive airflow can lead to product degradation and increased energy consumption. It is crucial to adjust the airflow rate based on the material characteristics and drying requirements.
Bed Height
The bed height or depth of the material in the dryer affects the residence time and drying efficiency. Maintaining the appropriate bed height ensures proper fluidization and uniform drying throughout the bed. Regular monitoring and adjustment of the bed height are necessary to optimize drying performance.
Combustible Dust Hazards
Many materials processed in fluidized bed dryers can pose combustible dust hazards. It is essential to implement appropriate measures to mitigate the risk of dust explosions, including proper ventilation, dust collection systems, and explosion suppression equipment.
Fire Prevention Measures
Preventing fires is crucial in fluidized bed dryer operations. Regular equipment inspection, cleaning, and maintenance help identify potential fire hazards, such as overheating components or accumulation of combustible materials. Installing fire detection and suppression systems further enhances safety.
Personnel Protection
Operators working with fluidized bed dryers should receive comprehensive training on safety procedures and equipment operation. Personal protective equipment (PPE), such as heat-resistant clothing, gloves, and goggles, should be worn to minimize the risk of injury from hot surfaces and flying particles.
Fluidized Bed Dryer Maintenance and Cleaning
Regular Inspections
Scheduled inspections of fluidized bed dryers help identify worn or damaged components that may affect performance or safety. Inspecting heating elements, fans, filters, and electrical systems allows for timely repairs or replacements to prevent downtime and costly repairs.
Cleaning Procedures
Proper cleaning of fluidized bed dryers is essential to prevent product contamination and maintain drying efficiency. Regular removal of accumulated debris, dust, and residue from the dryer chamber, filters, and ductwork helps ensure optimal airflow and heat transfer.
Component Replacement
Over time, components such as heating elements, fans, and seals may wear out and require replacement. Following manufacturer recommendations for component maintenance and replacement helps extend equipment life and prevent unexpected breakdowns.
Energy Efficiency of Fluid Bed Dryer
Heat Recovery Systems
Implementing heat recovery systems can significantly improve the energy efficiency of fluidized bed dryers. Recovering heat from the exhaust air and using it to preheat the incoming air reduces energy consumption and operating costs.
Insulation
Proper insulation of dryer chambers, ductwork, and heat exchangers minimizes heat loss and improves thermal efficiency. Insulating materials with high temperature resistance help maintain consistent drying temperatures and reduce heating requirements.
Air Recirculation
Recirculating a portion of the exhaust air back into the dryer reduces the need for fresh air intake and heating, resulting in energy savings. However, care must be taken to maintain proper air quality and prevent the buildup of contaminants.
Fluidised Bed Dryer Quality Control
Moisture Content Monitoring
Regular monitoring of the moisture content of the dried product ensures consistency and quality. Implementing moisture sensors and control systems allows for real-time adjustment of drying parameters to achieve the desired moisture levels.
Product Uniformity
Uniform drying is essential for maintaining product quality and consistency. Proper mixing and distribution of the material in the fluidized bed, along with precise control of drying parameters, help achieve uniform drying throughout the batch.
Process Optimization
Continuously optimizing the drying process based on product characteristics and performance feedback enhances efficiency and quality. Collecting data on drying kinetics, energy consumption, and product attributes allows for informed decision-making and process improvements.
Environmental Impact
Emissions Control
Fluidized bed dryers may emit pollutants such as volatile organic compounds (VOCs) and particulate matter. Installing emission control devices such as scrubbers, filters, and catalytic converters helps reduce air pollution and comply with regulatory requirements.
Waste Minimization
Minimizing waste generation is essential for sustainable dryer operations. Implementing recycling and reuse strategies for process water, packaging materials, and by-products reduces environmental impact and operating costs.
Regulatory Compliance
Fluidized bed dryer operators must comply with environmental regulations governing air emissions, waste management, and workplace safety. Staying informed about regulatory requirements and implementing appropriate measures ensures legal compliance and responsible operation.
Conclusion
Operating fluidized bed dryers according to best practices is essential for achieving optimal performance, safety, and environmental sustainability. By following guidelines for temperature control, airflow management, safety protocols, maintenance, and quality control, operators can maximize efficiency, minimize risks, and ensure the quality of dried products.
Shree Bhagwati Group’s Fluid Bed Dryer is an advanced, efficient solution for particulate drying, cooling, and agglomeration. With its focus on safety, automation, and adherence to cGMP standards, this technology ensures high-quality results, making it a preferred choice for industries requiring excellence in manufacturing processes.
