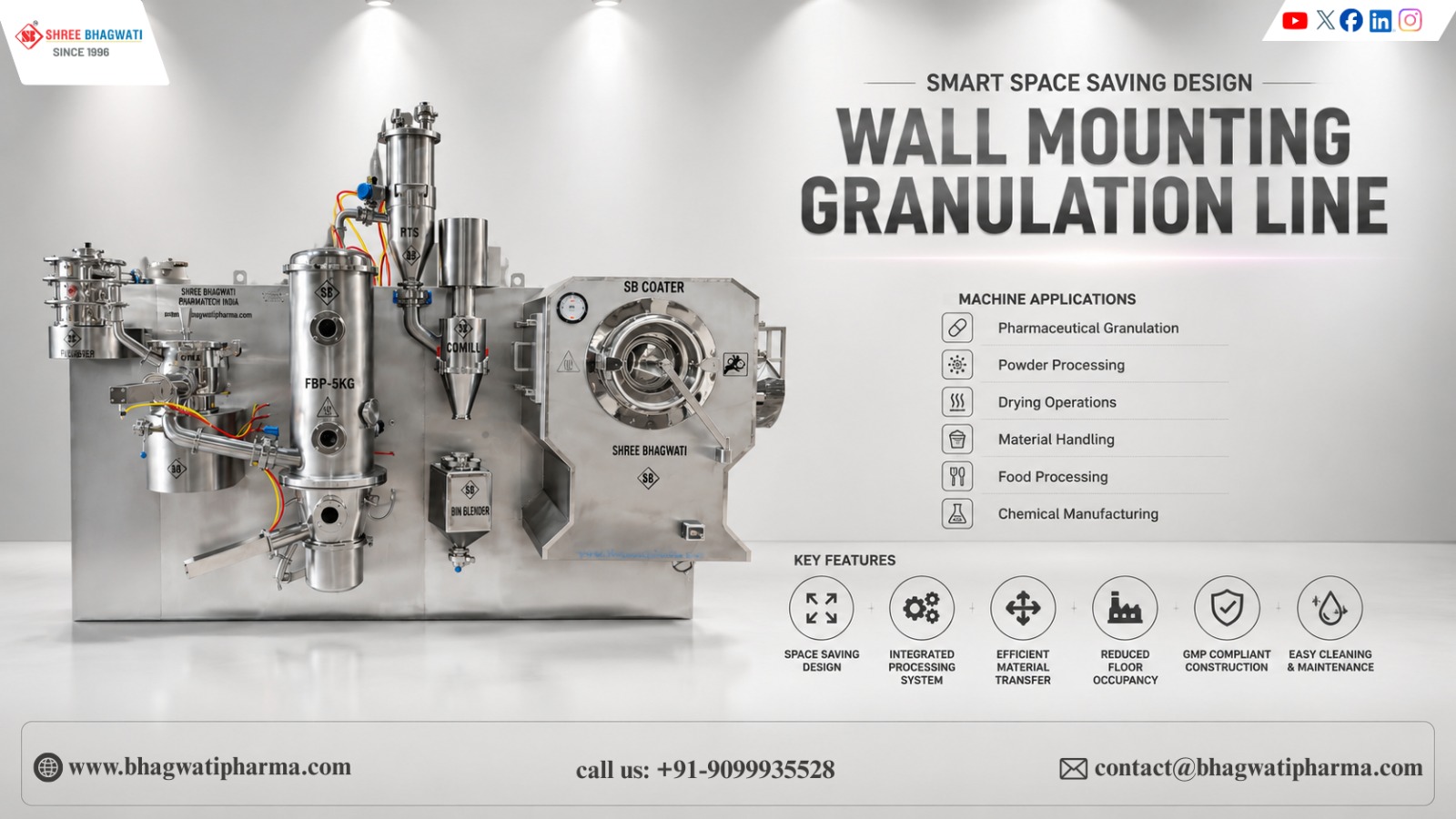

Closed Loop Granulation: Complete Overview
A closed-loop granulation line is the backbone of modern powder processing in pharmaceutical, chemical, fertilizer and food manufacturing. It connects raw material feeding, mixing, granulation, drying, cooling, coating, sifting and clean-in-place (CIP) operations into a single automated, dust-free workflow. Unlike conventional standalone equipment, a closed-loop granulation line moves material through sealed transfer pipelines and vacuum conveying systems, virtually eliminating manual handling, cross-contamination and product loss between stages. For manufacturers chasing GMP compliance, higher yield and consistent granule quality, this integrated design has become the industry standard rather than the exception. This guide walks through every stage of a closed-loop granulation line, the equipment involved and why it matters for production efficiency, product safety and long-term plant economics.
Closed-Loop Granulation Line Configuration and Core Equipment
A typical closed-loop granulation line configuration includes a raw material feeding system, shovel mixer or premixer, high-shear granulator, heating dryer, cooling unit, spraying and coating system, vibratory sifter, powder/granule transfer system and an integrated CIP arrangement. Dust collection and PLC-SCADA automation tie every section together, allowing recipe management, batch reporting and process interlocks from a single control interface. Whether the line handles active pharmaceutical ingredients, fertilizer granules, food powders or chemical compounds, the configuration stays largely the same: each unit is connected through pneumatic or vacuum transfer so the product never touches open air between stages. This modular approach also makes it easier to scale a line from pilot batches up to full commercial production.
Read Our Article
Ploughshare Mixers: Revolutionizing IndustriesRaw Material Feeding System – Starting Point of the Closed-Loop Granulation Line
Every closed-loop granulation line begins with controlled raw material charging. Powders enter through a bag-dumping station, charging hopper or silo, then move through a vacuum conveying system into the weighing and batching unit. Load cells, hopper level sensors and vacuum transfer interlocks ensure each batch is dosed accurately according to the recipe. This stage is critical for dust-free handling and prevents operator exposure to fine powders or potent active ingredients. Because the feeding system is fully enclosed, contamination risk drops sharply compared with manual scooping or open hopper loading used in older, conventional granulation setups.
Shovel Mixer and Premixing in a Powder Granulation System
Inside the shovel mixer, specially designed blades continuously lift and tumble the powder bed to create a homogeneous blend before granulation begins. Dry mixing typically runs five to fifteen minutes, with liquid binder addition introduced directly into the mixer if the formulation requires it. The mixer’s dust-tight construction keeps fine particles contained, supporting a mixing uniformity target of CV below 5%. This premixing step is essential to a reliable powder granulation system because uneven blending at this stage carries through every downstream process, affecting granule consistency, content uniformity or nutrient distribution in fertilizer and food products alike.
Our Other Product
Skid WIP PlantWet Granulation Process – Forming Uniform Granules
The wet granulation process is where loose powder becomes free-flowing granules. A binder solution is sprayed into the moving powder bed inside a high-shear granulator or mixer granulator, wetting the particles and forming liquid bridges between them. As mixing continues, these bridges drive agglomeration, granule growth and densification. PLC-based process control manages binder spray rate, mixer speed and granulation time to hit the target moisture content, typically 10–20% at this stage. The result is granules with improved flowability, reduced dust and higher bulk density than the original powder. This step directly determines compressibility and tablet quality in pharmaceutical applications, making precise control of granulation parameters non-negotiable for batch-to-batch consistency.
Heating Dryer and Cooling Section in a Closed-Loop Granulation Line
Wet granules move through a closed conveying system to the heating dryer, where hot air circulating at roughly 60–120°C evaporates moisture until the residual level falls to about 1–5%. Continuous monitoring of product temperature, inlet air temperature and exhaust humidity keeps the drying endpoint consistent batch after batch. Fluid bed granulator, rotary or tray dryers are common choices depending on product sensitivity and required throughput. Once dried, granules pass into a cooling dryer or cooler, where ambient or conditioned air brings the product temperature below 40°C. Cooling prevents caking and stabilizes the granules before they move into coating or packaging, preserving the granule strength built up during drying.
Spraying and Coating System for Functional and Protective Layers
Many closed-loop granulation lines include a spraying and coating system to apply color, protective or functional coatings using precision atomizing nozzles. Granules are fluidized or kept moving while the coating solution is sprayed, the solvent evaporates and a coating film forms around each particle. Spray rate, atomization pressure, product temperature and coating weight gain are tightly controlled to achieve consistent film thickness across the batch. Coating improves appearance, extends shelf life and in pharmaceutical or controlled-release applications, governs how the active ingredient is released over time. Exhaust air filtration captures solvent vapors and fines generated during this stage of the process.
Sifting, Classification and the Closed-Loop Recycle System
After coating, granules pass through a vibratory sifter for particle size classification, typically targeting a 0.5–4 mm product range depending on the application. Acceptable granules move forward to the product stream, while oversized particles go to milling and undersized fines return directly to the granulator. This closed-loop recycle system is one of the biggest advantages of an integrated granulation line: instead of discarding off-spec material, the line automatically reprocesses it, increasing yield and cutting raw material consumption. Over high-volume production runs, this recycle pathway can meaningfully reduce waste-disposal costs and improve overall plant economics and sustainability.
Read Our Article
Benefits of an Engine Oil Filling MachinePowder and Granule Transfer System – Dust-Free Material Handling
A closed-loop granulation line relies on a vacuum transfer system and pneumatic conveying to move material between every stage, supplemented by bucket elevators or screw conveyors where needed. Vacuum pumps, receivers, transfer hoppers and diverter valves route product automatically, removing the need for operators to carry containers between machines. This closed material handling approach is what gives the line its name: product stays sealed from feeding through to final packaging. The result is virtually no dust emission, lower contamination risk and a continuous, automated production flow that supports higher throughput with fewer operators required on the floor.
CIP (Clean-in-Place) System – Validation-Ready Hygiene
An automated CIP system is built into the shovel mixer, granulator, dryer, coating unit, transfer lines and storage hoppers, letting operators clean the entire closed-loop granulation line without dismantling equipment. A typical cycle runs pre-rinse, detergent wash, hot water rinse, final rinse and air drying, all triggered from the same PLC-SCADA interface used for production. This validation-ready design supports GMP compliance, reduces changeover downtime between batches and creates repeatable cleaning records for audits. For pharmaceutical and food manufacturers especially, a documented CIP cycle is often the deciding factor in whether a granulation line can be qualified for regulated production environments.
Dust Collection and PLC-SCADA Automation
Bag filters, cartridge dust collectors and HEPA filtration (for pharma-grade lines) keep the work environment clean by capturing fine particles generated during mixing, drying and coating. Negative pressure operation throughout the line further reduces the chance of dust escaping into the wider plant. On top of the mechanical systems, a PLC-SCADA platform manages recipe storage, batch reporting, process interlocks and remote monitoring, giving plant managers a single point of control over the entire closed-loop granulation line. This automation layer is what turns a collection of individual machines into one coordinated, repeatable production system.
Benefits of a Closed-Loop Granulation Line across Industries
Pharmaceutical, chemical, fertilizer and food producers all gain similar advantages from a closed-loop granulation line: dust-free operation, automated material transfer, reduced product loss, consistent granule quality and GMP-compliant design where required. Because the system minimizes manual intervention, it also lowers labor costs and reduces operator exposure to potentially hazardous powders. The built-in recycle loop improves yield, while the integrated CIP system keeps changeover times short between formulations. These combined benefits make closed-loop granulation lines attractive not just for large-scale manufacturers but also for mid-size plants looking to modernize batch processing without adding significant floor space or extra headcount.
Email!
Our Other Product
Vial Capping MachineChoosing the Right Closed-Loop Granulation Line for Your Production Needs
Selecting a closed-loop granulation line depends on product type, required throughput and the regulatory environment a plant operates in. Capacities commonly range from a few hundred kilograms per hour for pilot or small-batch pharmaceutical work up to several tonnes per hour for fertilizer or food-grade granulation. Buyers should evaluate drying technology (fluid bed, rotary or tray), coating requirements, sifter mesh sizes and the level of containment needed for potent or hazardous materials. Utility requirements such as compressed air, steam or thermal heating capacity also shape equipment sizing decisions. Working with an experienced granulation line manufacturer that can supply documentation like DQ, IQ, OQ and PQ protocols helps ensure the finished system is both production-ready and audit-ready from day one of operation.
Conclusion
A closed-loop granulation line brings every stage of powder processing – feeding, mixing, granulation, drying, coating, sifting and CIP cleaning – into one automated, dust-free system. This integration cuts product loss, improves granule consistency and keeps operations GMP-compliant with minimal manual intervention. The built-in recycle loop and validation-ready cleaning further boost yield while reducing downtime between batches. For pharma, chemical, fertilizer or food manufacturers, investing in the right closed-loop granulation line is a direct path to safer, faster and more reliable production.
