High-Speed Tube Filling Sealing Machines & Cartooning Machine: A Comprehensive Guide

In today’s fast-paced packaging industry, high-speed tube filling and sealing machines are game changers. Capable of handling up to 300 tubes per minute, these machines ensure efficiency and precision, making them indispensable for manufacturers of various products. Alongside these, high-speed cartooner machines further streamline the packaging process, ensuring products are neatly packed and ready for distribution. By integrating these advanced machines, companies can significantly enhance their production capabilities and maintain high standards of quality control.

High Speed Tube Filling and Sealing Machine

What is a High-Speed Tube Filling and Sealing Machine?

A high-speed tube filling and sealing machine is designed to fill and seal tubes at remarkable speeds. These machines are suitable for a range of tube materials, including aluminum-plastic composite tubes, plastic tubes, and aluminum tubes. The primary purpose of these machines is to automate the filling of products into tubes and seal them efficiently, maintaining high standards of quality and consistency. This automation not only boosts production rates but also ensures that each tube is filled accurately and sealed securely, which is crucial for maintaining the integrity of the product inside.

Types of Tubes Used

Plastic Tubes

Plastic tubes are commonly used for packaging a variety of products, from cosmetics to pharmaceuticals. These tubes are sealed using hot air heating, which ensures a secure and durable seal. Plastic tubes are favored for their flexibility and cost-effectiveness, making them suitable for mass production. They can be used for products such as creams, gels, and ointments, offering a versatile solution for different packaging needs.

Aluminum-Plastic Composite Tubes

These tubes combine the flexibility of plastic with the barrier properties of aluminum, making them ideal for sensitive products. The sealing process involves hot air or high-frequency heating, providing a robust seal that protects the contents from external factors such as air and moisture. This combination offers the best of both worlds: the malleability needed for efficient packaging and the protective qualities essential for product preservation.

Aluminum Tubes

Aluminum tubes are often used for products that require a strong barrier against light and air. The sealing process for these tubes typically involves folding, which provides a secure and tamper-evident seal. These tubes are particularly useful for products like pharmaceuticals and high-end cosmetics, where product integrity is paramount. The robustness of aluminum ensures that the contents remain uncontaminated and fresh over a longer period.

Plastic Tube Filling and Sealing Working Process

  • Tube Container: Tubes are loaded into the machine.
  • Automatic Tube Loading: Tubes are automatically positioned in the correct orientation.
  • Photoelectric Sensor Positioning: Ensures accurate alignment of each tube for consistent filling and sealing.
  • Fluid Filling: The product is filled into the tubes with precision to ensure uniformity.
  • Tube Hot Melting: The tube ends are heated to prepare for sealing.
  • Tube Sealing & Date/Batch Number Coding: Seals the tubes and prints the necessary information for traceability.
  • Tube Checking and Rejecting: Inspects each tube and discards any that do not meet quality standards.
  • Trimming: Trims any excess material from the seal to ensure a neat finish.
  • Output: Finished tubes are outputted for further packaging or distribution.

Plastic Tube Filling and Sealing Working Process

Metal Tube Filling and Sealing Process

  • Tube Container: Tubes are loaded into the machine.
  • Automatic Tube Loading: Tubes are automatically positioned for filling.
  • Photoelectric Sensor Positioning: Ensures accurate alignment to avoid filling errors.
  • Fluid Filling: The product is filled into the tubes, ensuring each one has the correct amount.
  • Folding Tube: The tube ends are folded to seal, providing a tamper-evident closure.
  • Tube Checking and Rejecting: Inspects each tube and removes any that do not meet quality standards.
  • Output: Finished tubes are outputted, ready for packaging and shipment.

Specifications of High-Speed Tube Filling Machines

Tube Specifications

  • Diameter: 13-30 mm
  • Length: 60-250 mm

Color Mark Positioning

  • Accuracy: ±1.0 mm

Filling Capacity and Accuracy

  • Capacity: 1.5-200 ml (specific specifications vary depending on the product and machine setup)
  • Accuracy: ≤±0.5%, ensuring precise filling for each tube.

Sealing Tails Options

  • Two-fold, three-fold, and saddle-shaped folds are available, providing flexibility in sealing methods to suit different product requirements.

Output Capacity

  • 100/200/300 tubes per minute, allowing manufacturers to meet high production demands efficiently.

Facts About High-Speed Tube Filling Machines

Fact 1: They can handle up to 300 tubes per minute, significantly boosting production efficiency and allowing manufacturers to meet high demand with ease.

Fact 2: The accuracy of these tube filling machines is within ±0.5%, ensuring consistent product quality and reducing the likelihood of product wastage due to overfilling or underfilling.

Fact 3: They can fill a wide range of capacities, from 1.5 ml to 200 ml, catering to various product requirements, which makes them highly versatile and suitable for different industries.

Fact 4: These machines use advanced technologies like full-servo systems and hot air or high-frequency heating for sealing, which enhances the reliability and durability of the seals.

Fact 5: High-speed tube filling machines are designed to minimize waste, reducing environmental impact and saving costs. This efficiency in material usage is a significant advantage in today’s sustainability-focused market.

Importance in the Packaging Industry

High-speed tube filling machines are vital in the packaging industry for their ability to handle a variety of products, including liquids, pastes, and semi-solids. Their speed and precision make them superior to traditional filling methods, significantly enhancing production efficiency and product quality. These machines are crucial for companies that need to produce large quantities of packaged goods quickly and consistently, ensuring that they can meet market demands and maintain competitive edge.

Technological Innovations

Full-Servo Technology

This technology allows for precise control over the filling and sealing process, ensuring consistent results and reducing the risk of errors. Full-servo systems provide greater flexibility and accuracy, enabling manufacturers to easily adjust settings for different products and packaging requirements. This adaptability is essential for meeting diverse market needs and maintaining high quality standards.

Hot Air and High-Frequency Heating

These methods provide effective sealing for different types of tubes, ensuring a strong and durable seal that protects the product inside. Hot air heating is particularly suitable for plastic tubes, while high-frequency heating is used for composite and metal tubes. These technologies ensure that the seal is robust and reliable, preventing leaks and maintaining product integrity.

Quality Control and Standards

Ensuring the consistency and reliability of the filled and sealed tubes is crucial. High-speed tube filling machines are designed to meet stringent industry standards, with rigorous quality control measures in place to detect and reject faulty products. This includes automated inspections and real-time monitoring systems that check for proper filling, sealing, and coding. By adhering to high quality standards, manufacturers can ensure that their products meet regulatory requirements and consumer expectations.

Future Trends

Automation and Smart Technologies The future of tube filling and sealing machines lies in further automation and the integration of smart technologies. These advancements will enhance precision, reduce downtime, and provide real-time monitoring and analytics. For example, machines equipped with artificial intelligence and machine learning algorithms can detect and correct issues in real time, improving overall efficiency and reducing waste.

Environmental Considerations Sustainability is becoming increasingly important, with a focus on reducing waste and energy consumption. Future machines will likely incorporate more eco-friendly technologies and materials, such as biodegradable packaging materials and energy-efficient components. Manufacturers are also exploring ways to reduce water usage and emissions in the production process, aligning with global efforts to combat climate change.

High-Speed Cartooner Machines

High-speed cartooner machines complement tube filling machines by packaging the filled tubes into cartons. These machines can handle a wide range of products and container types, ensuring efficient and precise packaging. They automate the entire process, from loading products into cartons to folding and sealing them, which reduces labor costs and increases production speed.

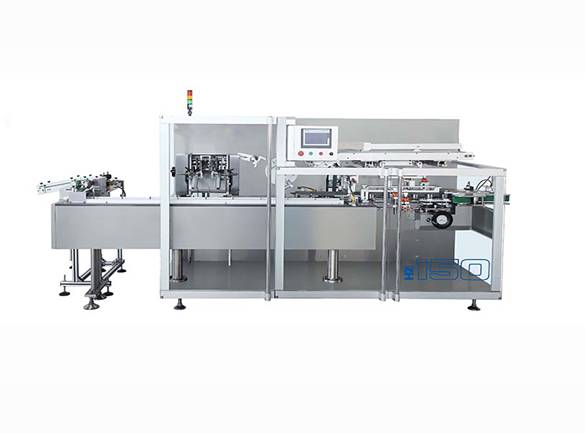

Automatic cartooning machine

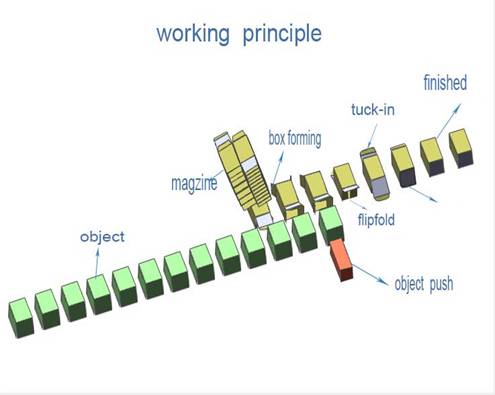

Automatic cartooning machine working principle

Overview and Purpose

Cartooner machines are designed to automate the process of loading products into cartons, folding, and sealing them. This not only speeds up the packaging process but also ensures consistency and reduces labor costs. By automating these tasks, manufacturers can increase their output and maintain high quality standards.

Automatic cartooning machine handle blister packs pouches

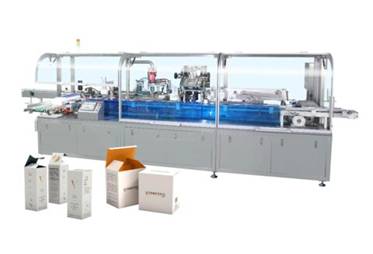

Automatic cartooning machine handle various containers bottles

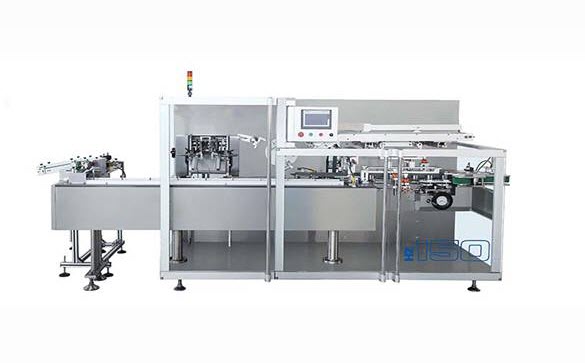

Automatic cartooning machine
Automatic Bottle Blisters Food Packaging Machine

High-Speed Cartooner Machines Key Features

  • High Speed: Capable of handling up to 300 cartons per minute, significantly increasing packaging efficiency.
  • Versatility: Can package a variety of containers, including bottles, blister packs, and tubes, making them suitable for different industries.
  • Automation: Fully automated process from loading to sealing, which minimizes human intervention and reduces the risk of errors.

Blister Packing Cartoning Bundling and Case Packing Production Line

Conclusion

High-speed tube filling and sealing machines play a critical role in the packaging industry, enabling manufacturers to meet high production demands while maintaining product quality and consistency. With their ability to fill and seal tubes at remarkable speeds, these machines are indispensable for companies across various sectors, from pharmaceuticals to cosmetics. As technology continues to advance, these machines will become even more efficient, reliable, and sustainable, driving further innovation in the packaging industry.
