Objective
The objective of this article is to highlight the benefits and technical features of Shree Bhagwati Pharma’s Integrated Wall-Mounted Granulation Line. This article focuses on the system’s efficiency, design, and compliance with GMP/CGMP standards for the pharmaceutical industry, emphasizing the innovative features and high containment necessary for producing high-potency drugs.
Integrated High-Containment Granulation Line: A Revolutionary Approach for Lab and Pilot Scale Production
Shree Bhagwati Pharma presents an advanced Integrated Wall-Mounted Granulation Line that is designed to provide the highest level of efficiency, containment, and compliance for laboratory and pilot-scale production. This high-containment granulation system is ideal for manufacturing solid oral dosage forms, converting raw powders into uniform, free-flowing granules that are perfect for tablet compression and capsule filling. With a compact and ergonomic wall-mounted design, this system ensures maximum space utilization and ease of operation.
Key Features of the Wall-Mounted Granulation Line
The integrated system includes a series of high-quality equipment that works together seamlessly to deliver consistent and high-yield batches. Here’s a breakdown of the essential components and their functions:
1. Sifter: Ensuring Uniform Screening and Removal of Foreign Particles
The sifter efficiently screens raw materials to ensure uniform granulation by removing lumps, foreign particles, or any other undesirable elements, thereby enhancing the final product quality.
2. Rapid Mixer Granulator (RMG): Precision in Wet Granulation
The Rapid Mixer Granulator is crucial for efficient mixing and wet granulation. It operates with precision control over the impeller and chopper speeds, enabling uniform mixing and ensuring that the desired consistency of the granules is achieved.
3. Fluid Bed Dryer (FBD): Optimized Drying Process
The Fluid Bed Dryer is designed to provide controlled drying of granules with optimized airflow and temperature control. This ensures that the granules are dried uniformly, maintaining their quality and stability.
4. Co-Mill: Consistent Particle Size Reduction
After drying, the co-mill is employed for uniform particle size reduction, ensuring the granules are of consistent size and ready for further processing or tableting.
5. Blender: Homogeneous Blending of Granules and Lubricants
The blender ensures that dried granules are perfectly blended with lubricants, resulting in a homogeneous mixture, which is essential for smooth tablet formation.
6. Tablet Coater (Optional): Film and Sugar Coating Applications
An optional tablet coater can be integrated into the system for both film and sugar coating applications. This provides an additional layer of customization for the final product, meeting varying customer demands.

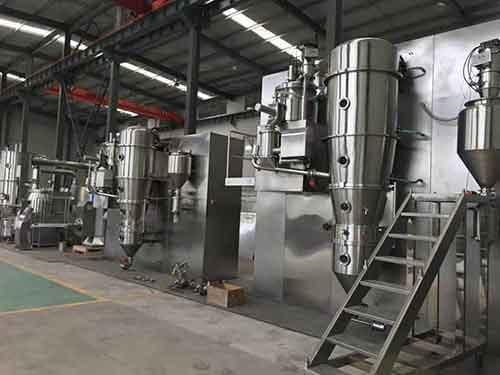

Major Benefits of the Wall-Mounted Design
The wall-mounted granulation line offers several key advantages that enhance productivity, operator safety, and cleanliness:
- Compact Installation and Space Efficiency:
The system’s wall-mounted design significantly reduces the floor space requirements, making it ideal for laboratories and pilot-scale production facilities that require a compact yet efficient layout. - In-Line Operation for Maximum Efficiency:
All the equipment is positioned in a linear flow sequence to ensure efficient material transfer, reducing the chances of contamination and improving throughput. - Centralized Utility Area for Easy Access:
The utility connections, service lines, and maintenance access are conveniently located behind the wall, ensuring a clean and GMP-compliant front area for operation. - Closed & Contained Operation:
The system’s design supports OEL-compliant, closed granulation processes, minimizing operator exposure to harmful substances, particularly when handling highly potent active pharmaceutical ingredients (HPAPIs). - Improved Productivity & Consistent Quality:
The integrated automation of the system reduces handling time and ensures consistent batch quality, leading to higher productivity and yield. - Safe and Hygienic Operation:
Made from stainless steel AISI 304 / 316L, the system is designed for ease of cleaning and maintenance, with a smooth surface that supports CIP/WIP (Clean-in-Place / Wash-in-Place) capabilities, ensuring hygienic operation.
Available Models & Capacities for Every Stage of Production
Shree Bhagwati Pharma offers different models and capacities to cater to varying production needs, ensuring that customers have the right system for their scale of operation:
- 5 kg Lab Scale: Suitable for small-scale laboratory applications.
- 10 kg Pilot Scale: Ideal for pilot testing and R&D purposes.
- 15 kg Pilot Scale: Offers slightly higher capacity for pilot-scale batches.
- 20 kg Pilot Scale: Larger pilot-scale batch size for more extensive testing and experimentation.
- 60 – 500 kg Production Scale: Suitable for full-scale production, offering closed-type wall-mounted structures for larger batch processing.
Key Design Highlights: Flexibility and Customization
Shree Bhagwati Pharma’s Integrated Granulation Line is designed with flexibility and customization in mind, offering several key features to enhance operational efficiency:
- Horizontal & Vertical Layout Options:
The system can be customized to fit the specific layout of your production facility, whether it’s horizontal or vertical. - OEL & Containment Ready (Closed Loop System):
The system is designed to support OEL-compliant and closed-loop containment systems, ensuring operator safety when handling potent drugs. - Cost-Efficient Modular Construction:
The modular construction allows for cost-effective expansion and modification, enabling you to scale your production capacity as needed. - Enhanced Visualization & Process Control:
The system’s design includes advanced process control technologies, offering better visualization and ensuring that each batch is consistent and high-quality. - Improved Batch Consistency and Yield:
The integration of automation and optimized equipment ensures that each batch produced is consistent, leading to better yield and higher efficiency.

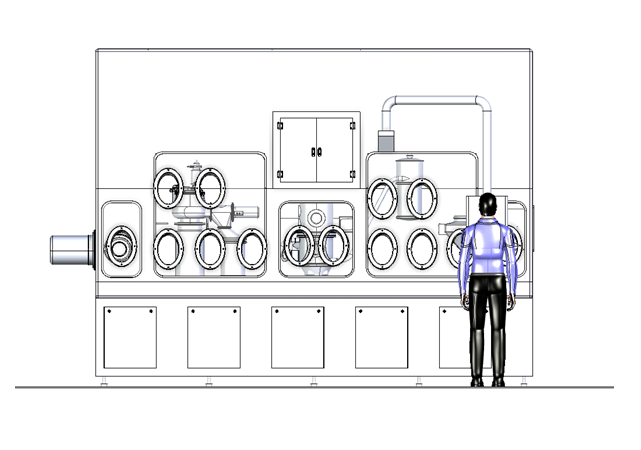

High-Containment Granulation Line for High-Potency Drugs
The high-containment granulation line offered by Shree Bhagwati Pharma is specifically designed to handle the complexities of processing highly potent active pharmaceutical ingredients (HPAPIs) used in specialized treatments such as oncology and cardiovascular medicines. The system is designed to meet OEB 4–5 levels, ensuring safety and compliance with GMP, CGMP, and US FDA guidelines.
System Features and Process Flow for High-Containment Granulation
1. Material Loading and Weighing:
Raw materials are safely transferred into the system through an RTP valve, ensuring containment. Weighing is performed within the isolator for accuracy and safety.
2. Granulation Process:
The raw powders are mixed and granulated in a High Shear Mixer Granulator, followed by wet milling to achieve uniform granule size.
3. Drying and Size Reduction:
After granulation, the wet granules are vacuum conveyed to a Fluid Bed Granulator/Dryer for controlled drying. Post-drying, the granules undergo size reduction through a Co-Mill.
4. Storage and Buffering:
After milling, the granules are transferred to a buffer tank and stored under controlled conditions until ready for further processing.
5. Automated Docking and Discharge:
The system integrates an automatic docking and discharge system, ensuring that the granules are transferred to the next step with minimal manual handling.
Conclusion: Future-Proofing Pharmaceutical Manufacturing
Shree Bhagwati Pharma’s Integrated High-Containment Granulation Line offers a state-of-the-art solution for pharmaceutical manufacturers looking to optimize their production processes while ensuring compliance with the highest safety and quality standards. The system’s compact design, ease of integration, and automation make it an ideal choice for pharmaceutical companies of all sizes, particularly those working with potent APIs.
Whether you are conducting R&D at the lab scale or full-scale production, Shree Bhagwati’s granulation line provides a scalable, efficient, and safe solution that meets the demands of modern pharmaceutical manufacturing.
