Octagonal Blender Machine


The Octagonal Blender Machine manufactured by us at Shree Bhagwati Machtech (India) Pvt. Ltd is entirely suitable for the mixing of granular products. The machine also offers great flexibility of operations as well as easy cleaning and maintenance. Simple structure with GMP-compliant design further enhances the functionality of the machine.

This Machine has been developed for mixing of various types of granular products. The machine is efficient and versatile used in mixing and lubrication processes in various industries. Some of the main industries of use include pharmaceutical production, food industries, chemical processing and also making of cosmetic products.

Octagonal Blender equipment has an octagon shaped body with a rectangular central portion. It is equipped with baffles that enable fast and efficient mixing as well as rapid charging and discharge ports with suitable butterfly valves. The equipment is highly suitable for areas where gentle blending of dry granules or powder is required.

The OCTAGONAL BLENDER is an efficient and versatile blending machine for mixing and lubrication process of dry granules homogeneously. Two third of the volume of the Cone Blender is filled to ensure proper mixing.

The Octagonal Blender Machine gives best result for granules due to very slow speed and octagon shape of container. It can be used for Pharmaceutical, Food, Chemical and Cosmetic products etc.

In Octagonal Blender the granules comes from all sides due to the octagonal shape of the product container, hence requirement of RPM is less. Suitable mainly for Crystalline & Granular type material. This type of material gets sufficient continuous movement due to their shape if container have only slow movement and will results in good quality of blending / lubrication of granules.

Technical Specification : Double Cone Blender Machine

Cap in kgs Cap in ltrs Gross volume Motor Gear box Discharge valve Overall dimensions L X W X H
100 300 375 1.5 22 150 2165 X 1535 X 2585
165 500 600 2 30 200 2250 X 1800 X 2700
200 600 725 2 30 200 2300 X 1800 X 2800
250 750 875 3 35 200 2300 X 1850 X 2800
265 800 950 3 35 200 2350 X 1000 X 2800
335 1000 1150 5 50 250 2700 X 2100 X 3050
400 1200 1300 5 40 250 2800 X 2270 X 3050
500 1500 1700 5 50 250 2850 X 2525 X 3120
650 2000 2200 7.5 50 300 2800 X 2800 X 3350
850 2500 2700 7.5 60 300 2800 X 2800 X 3450
950 2800 3500 10 60 300 2800 X 2900 X 3500
1200 3400 4000 10 60 300 2900 X 3000 X 3700

  • Contact parts are made out of SS316 / SS304 material.

  • Inside & outside surfaces of contact parts will be polished to the mirror finish.

  • Gear box : Redicon / Shanthi / Elecon make.

  • Starter : D.O.L.

  • All other fabricated parts are made out of SS304 & polished to the matt finish.

  • Butterfly Valve at Discharge of container.

Salient Features of Octagonal Blender

  • Suitable for dry mixing of products in granule form.

  • Easy for loading and unloading of material.

  • Easy for cleaning.

  • The octagonal shape & slow speed of rotating gives sufficient continuous movement to the granules, result in good quality.

  • Simple design requires minimum maintenance.

  • General structure & safety guards made out of mild steel & coloured in Standard Model and made out of SS 304 & polished to the matt finish in GMP Model.

  • Maximum care has been taken to ensure safe operation of the unit.

  • Manual rotating facility with hand wheel for inching.

  • Bigger size batch at low power consumption.

  • Easy to clean and maintain in usage

  • Inclusion of a bin charging system that achieves a completely dust free operation

  • Reduced total powder consumption that translates to efficiency and greater productivity.

  • The octagonal shape allows blending granules from all sides in a continuous slow movement that results in high quality blending and lubrication of granules.

Other Option Available with Octagonal Blender Machine

  • Contact parts made out of SS316 instead of SS304.

  • Flame proof drive motor along with flame proof starter.

  • Vacuum Loading facility for material charging.

  • Cylindrical container with cone for material charging.

Octagonal Blender machine for Pharmaceutical Industries powder and granules blending and mixing capacity  5 kg to 5000 kg batch , Shree Bhagwati designed Octagonal blender with PLC + HMI base working Vacuum Powder Transfer Systems for products feeding and Octagonal Blender machine and unloading to BIN or  Bin Blender for Homogenous mix of multi lots into a batch 2 Cu.Ft to 200 Cu. Feet  or more capacity up to 500 cubic feet customized we manufacturer .

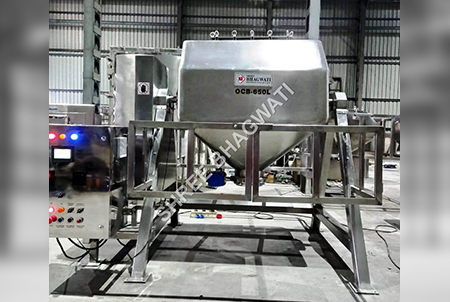

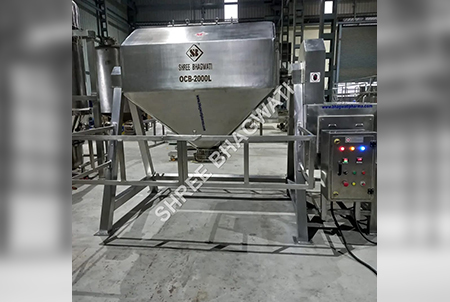

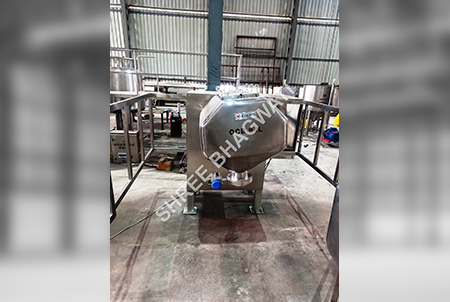

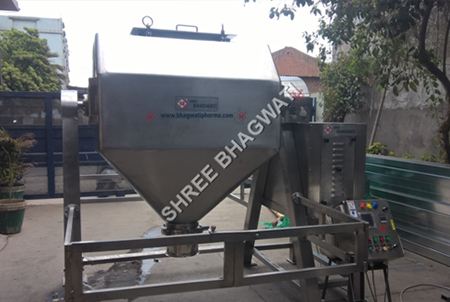

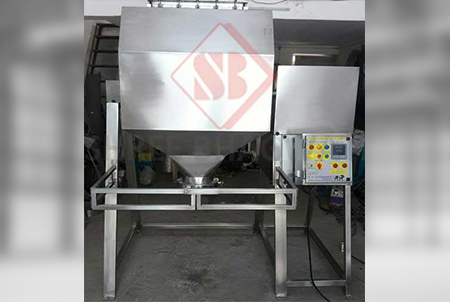

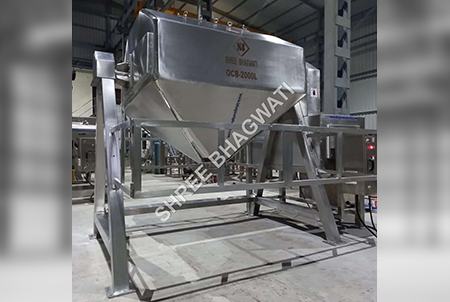

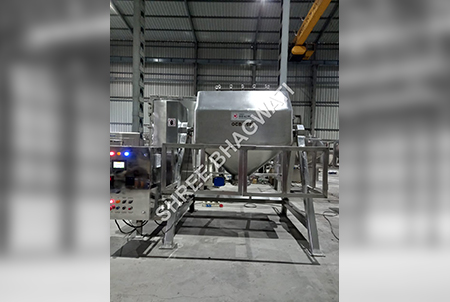

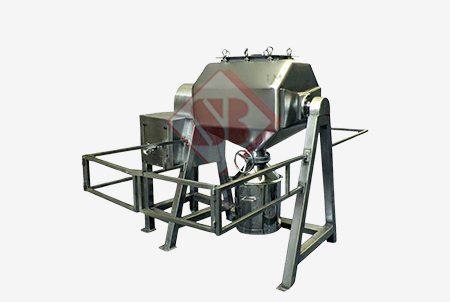

Octagonal Blender Machine

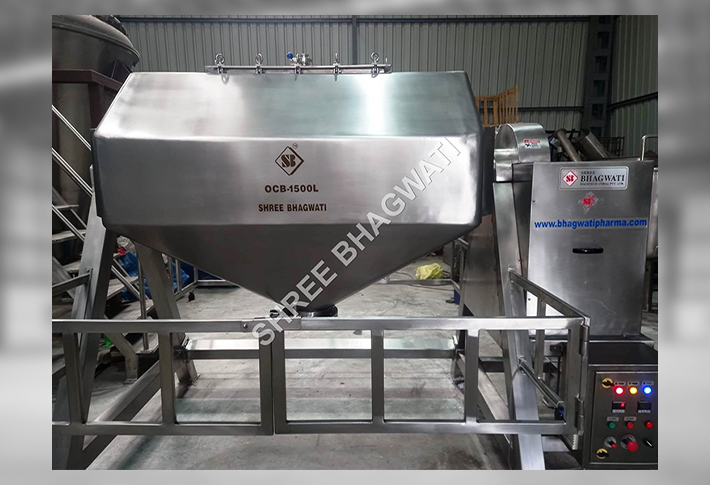

Octagonal Blender Machine for Pharmaceutical Industries Powder

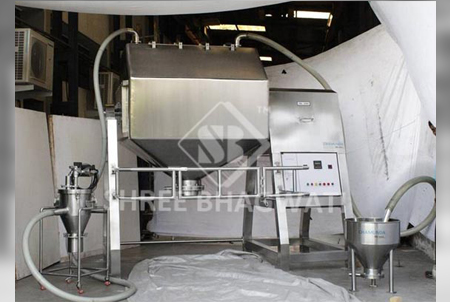

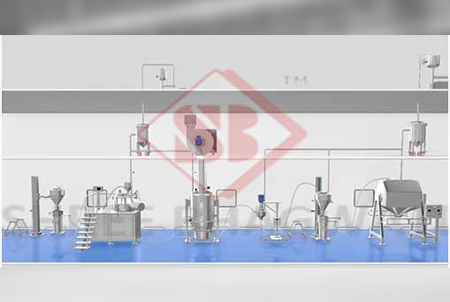

Vacuum Powder Transfer Systems for Octagonal Blender Machine
Octagonal Blender Machine for Pharmaceutical Industries Powder and Granules Blending
Vacuum Powder Transfer Systems for Products Feeding
Product Video
Note:Dimensions & Technical Details are subject to change as per customers’ requirement without any further notice.
