Objective:
This article gives a comprehensive overview of the Shree Bhagwati Oral Liquid Manufacturing Plant, highlighting its design, functionality, technical specifications, and industrial applications. It is intended to guide pharmaceutical and nutraceutical manufacturers in understanding the plant’s key features, benefits, and operational advantages in syrup and suspension production.
Introduction to Oral Liquid Manufacturing

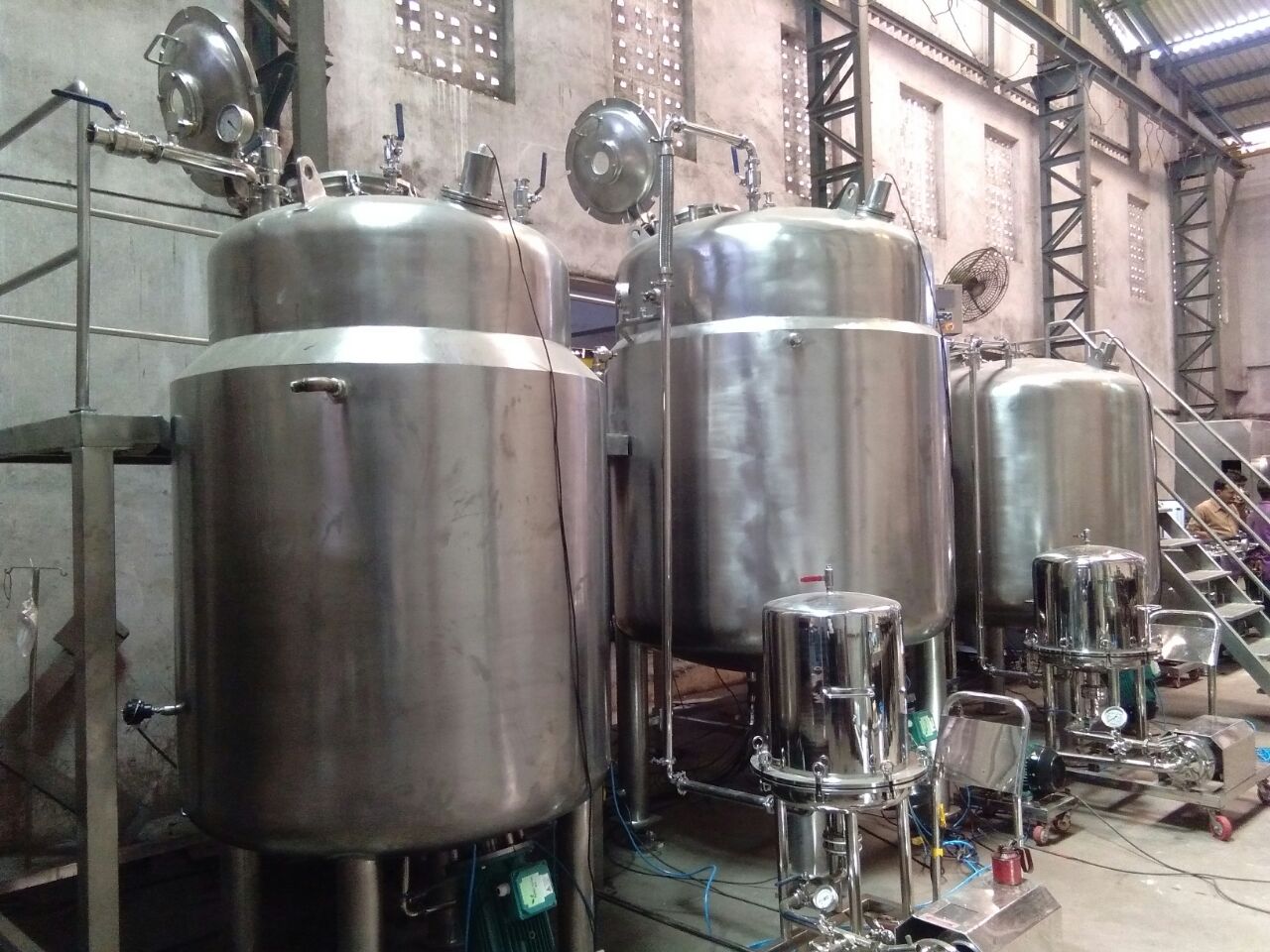

About Shree Bhagwati’s Oral Liquid Manufacturing Plant
Shree Bhagwati’s system is a comprehensive, cGMP‑compliant solution designed for the complete manufacture of oral liquids. Built to meet FDA and other global regulatory standards, it supports the production of various oral formulations—sugar‑based syrups, suspensions, herbal liquids, and nutraceutical tonics. The plant is meant to give companies flexibility in batch size and formulation type while ensuring hygiene, safety, and consistency. From sugar dissolution to homogenization to storage, every step is engineered for operational efficiency.
Breakdown of the Complete System
- Sugar Dissolving Vessel (SDV): This vessel dissolves sugar or sweeteners uniformly. It’s constructed of SS316 stainless steel, with internal mirror finish, equipped with agitators (power depends on model) and features for hygiene (flush bottom valve, CIP‐connectivity).
- Manufacturing Vessel (MV): After sugar is dissolved, the solution moves to this vessel, where active ingredients, excipients, flavors, etc., are added. It includes bottom‑entry agitators for uniform mixing, steam jackets or heating/cooling jackets, sensors, safety devices.
- Storage Vessel (SV): Once the formulation is ready, the product is stored in this vessel under controlled conditions until packaging. Likewise made of SS316 stainless steel, fitted with level gauges, temperature/pressure monitoring, and designed for clean transfer to filling lines.
- Inline High‑Shear Homogenizer & Piping System: Ensures uniform suspension blending, fine dispersion of solids or oils, and uniform texture. The piping is electro‑polished; fittings are hygienic tri‑clover type for easy cleaning and minimal hold‑up.
- Walkable Operation Platform & Centralized Control Panel: Operators have safe access to vessels via platforms and staircases. The control panel provides monitoring and control over parameters like temperature, pressure, agitator speed, and homogenizer operation.
Technical Specifications & Model Range
Shree Bhagwati offers a lineup of models from 1KL up to 5KL capacities. Key technical details include:
Specification | 1 KL Model | 2 KL Model | 3 KL Model | 4 KL Model | 5 KL Model |
Sugar Dissolving Vessel Working Volume (L) | 500 | 1000 | 1500 | 2500 | 3000 |
Manufacturing Vessel Working Volume (L) | 1000 | 2000 | 3000 | 4000 | 5000 |
Storage Vessel Capacity Similar to MV | — | — | — | — | — |
Agitator Power (HP) for SDV | 2 | 3 | 5 | 7.5 | 7.5 |
Agitator Power (HP) for MV & SV | 3‑10 depending on model | — | — | — | — |
Inline Homogenizer Power | 7.5 HP across all models | — | — | — | — |
Approximate Ceiling Height Needed (mm) | from ~3600 mm for smaller models to ~4800 mm for the largest | — | — | — | — |
These specifications allow users to choose a scale appropriate for their production volume. Installation space must account for height, walkable platforms, piping, maintenance access, etc.
Key Salient Features
The plant is packed with features designed to ensure product quality and ease of operation. Some of the standout attributes are:
- Construction to cGMP and FDA standards
- All product‑contact parts in SS316 stainless steel; internal surfaces mirror finish, external matte finish
- Electro‑polished piping and hygienic tri‑clover fittings for tool‑free maintenance
- Flush bottom valves for full drainability
- Propeller‑type bottom entry agitators to ensure uniform mixing without dead zones
- Water‑cooled mechanical seals to prevent leaks
- Inline high‑shear homogenizer for even suspension blending
- Fitted with safety components: temperature sensors, pressure gauges, safety valves, air vents, steam jackets
- CIP (Clean‑In‑Place) connectivity for easy sanitation
These features support consistent batch quality, reduced contamination risk, and efficient maintenance.
Optional Features for Advanced Customization
Depending on the manufacturing or regulatory demands, the oral liquid manufacturing plant can be customized with:
- Electrical heating (especially in smaller models)
- PLC‑based automation with color HMI touchscreen interfaces
- Pneumatic actuated valves to reduce manual handling
- Product contact parts in SS316L (for more corrosive or specialty formulations)
- Vacuum‑based sugar transfer systems (automated sugar feeding)
- Load cells for precise batch weight monitoring
- Automatic CIP skid for automated cleaning
- Full compliance with regulatory norms like 21 CFR Part 11 for data integrity and traceability
Applications & Use Cases
This plant is suitable for:
- Sugar‑based syrups (e.g. cough syrups, flavor syrups)
- Sugar‑free syrups and herbal tonics
- Oral suspensions (antacids, antibiotic suspensions, etc.)
- Nutraceutical and herbal health‑boosting liquids
Industries using it include pharmaceutical, herbal/nutraceutical, traditional medicine, and health supplement manufacturers. The system supports both small‑scale and large‑scale operations, allowing businesses to scale up without compromising on quality or regulatory compliance.
