Oscillating Granulator, Granulating Machine

Description

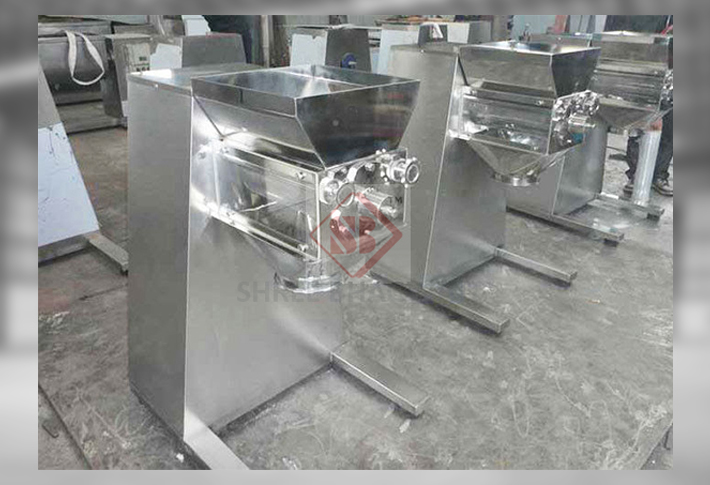

Oscillating Granulator, Granulating Machine is HORIZANTAL TYPE & VERTICAL TYPE granulating system with complete machine manufactured / cladded out of S.S. 304 . The machine will be a gmp model. The machine is complete in all respects and fitted with 1 H.P. T.E.F.C. motor. Standard reduction box and a starter. The body of the machine is “L” shaped fabricated structure and fitted with castor wheels for ease and mobility. Model 8” & 12” are vertical models whereas 15” model is horizontal model. The difference between vertical model and horizontal model is that in vertical model the oscillation is done by a gear mechanism and a vertical shaft is suspended from the top and a propeller type grinder blade moves in oscillating motion and material is pushed through the mesh to get the output of desired mesh size. In horizontal model there are diamond shaped blades horizontally fitted and driven by a gear box through gear mechanism to give oscillating motion.


Technical Specification of Oscillating Granulator, Granulating Machine


Vertical Model

































Hopper Capacity 15 & 30 LTRS. (8' & 12')
Screen Area 8' x 12' respectively
Output 30 TO 100 / 200 KGS / HR (Approximately Depending Upon The Material)
Power Supply 1 H.P (8”) 1.5 H.P. (12”). 1440 R.P.M , 440 VOLTS, 3 PHASE, 50 CYCLES A.C.
Approximate Dimensions 28” X 16.5” X 48”
Net Weight 210 KGS
Gross Weight 295 KGS

Horizontal Model

































Hopper Capacity 34 LTRS
Screen Area 12.4' X 14.3' Length
Output 30 TO 200 KGS / HR (Approximately Depending Upon The Material)
Power Supply 1.5 H.P 1440 R.P.M , 440 VOLTS, 3
PHASE, 50 CYCLES A.C.
Approximate Dimensions 28' X 16.5' X 48'
Net Weight 210 KGS
Gross Weight 295 KGS
