PLOUGH SHEAR MIXER, PLOW MIXER, PLOUGHSHARE MIXER, PLOUGH MIXER

Description

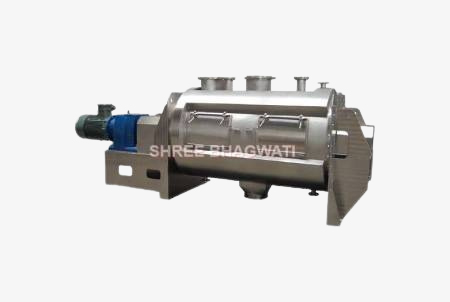

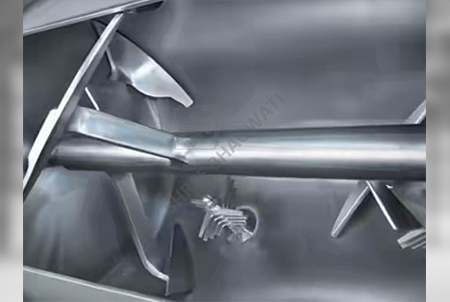

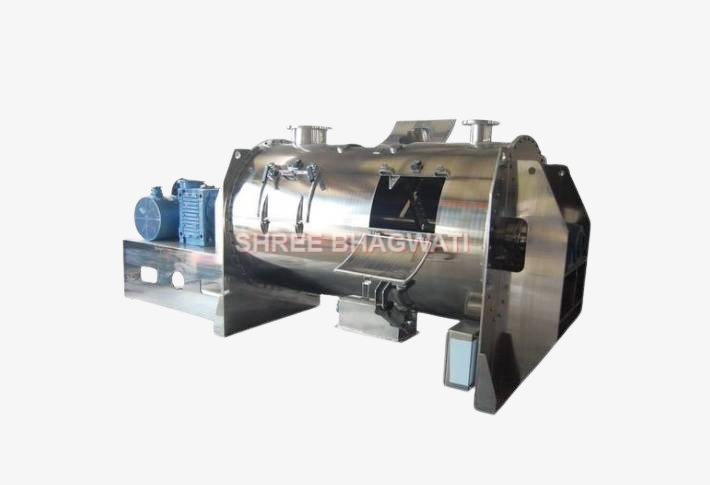

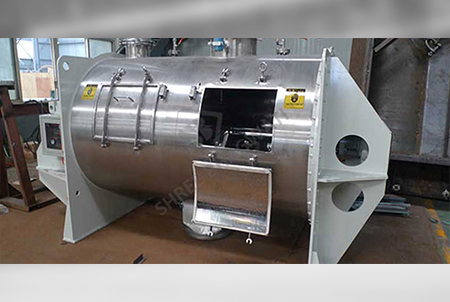

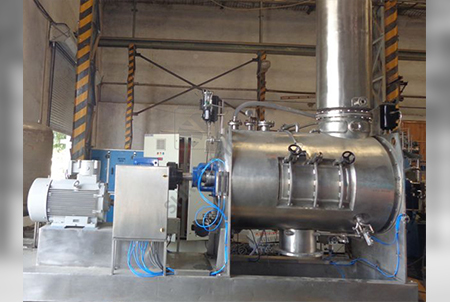

Plough Shear Mixer is designed for heavy duty blending of both Dry and Wet materials. (also named ploughshare mixer, plow mixer, plough mixer) consists of a cylindrical drum containing plough shaped mixing elements that are mounted on a horizontal shaft. It creates a mechanical fluidized bed mixing action. plough shear mixer is widely used in the mixture of chemical materials, pigment, pharmaceutics materials, feedstuff, especially in the mixture of fragile solid grain; In a short time, the mixer has good mixing effect for the materials which has a great difference in grain and density. The plough shear mixer can be designed to carry out the industrial processes like Mixing, Drying, Reacting, Moistening/Coating, Sterilization, Granulation and Emulsification . Plough Shear Mixer is designed for heavy duty blending of both Dry and Wet materials. Plough shape shovels mounted on central shaft with its intendeds are easily penetrable through the dense powder mass in a cylindrical drum or a vessel. mixer shaft in a horizontal, cylindrical drum. The size, number and positioning, geometric shape and peripheral speed of the mixing. Plough Shear Mixer Shuffling of the mixture is achieved by broader end of the shovels. Penetration followed by agitation of the mass in quick succession of the specially designed blades results in homogeneity of powder mass both in dry and wet stages. Appropriate dough formation is reached in later process. Centrally mounted chopper will then operate to obtain wet granules of uniform size. Mixed homogeneous mass can be easily discharged from bottom of the mixing drum which is provided with flush fit discharge port. Processed Material with our machines for below industries :
  • Plough Shear Mixer for Foods
  • Plough Shear Mixer for Starch
  • Flavoring Plough Shear Mixer
  • Coffee Plough Shear Mixer
  • Chocolate Plough Shear Mixer
  • Nutraceuticals Plough Shear Mixer
  • Cosmetic Plough Shear Mixer
  • Pharmaceuticals Plough Shear Mixer
  • Detergent Plough Shear Mixer
  • Soaps Plough Shear Mixer
  • Metal Powders Plough Shear Mixer
  • Minerals Plough Shear Mixer
  • Friction Material Plough Shear Mixer
  • Ceramics Plough Shear Mixer
  • Agricultural Chemicals Plough Shear Mixer
  • Cement and Sand Plough Shear Mixer
  • Carbon black Plough Shear Mixer
  • Fire retardants Plough Shear Mixer


Standard Features of Plough Shear Mixer



  • Capacity range from 100-30000L

  • Mild Steel/Stainless Steel construction

  • One end welded and one end bolted

  • Normal Temperature and Pressure inside mixer

  • Gear Reducer Motor

  • Gland Packing Seal + Air Purge Seal

  • Pneumatic Operated Outlet Valve


The same top side labellers model is used for FFS Ampoule cassettes for Top & Bottom labelling with special configuration.

PACKING CONVEYOR BELT.

  • Packing hghg conveying of goods for packing.

  • PVC and endless belt for long life.

  • Structure is made from AISI 304 with matt finish.

  • Belt-alignment system for long life & striate running of belt.

  • Available in varioue sizes : 9” Or 12” widht and any length.

  • Food grade PVC coated Widely used in any packing lines in foods, Pharmaceuticals, Cosmetics, Distilleries & Breweries, Pesticide etc.
