In today’s competitive packaging industry, the need for a reliable, high-speed, and versatile capping machine is greater than ever. Whether you’re packaging pharmaceuticals, beverages, cosmetics, or chemicals, achieving a secure and tamper-evident seal is critical for product integrity and consumer trust. At Shree Bhagwati, we provide cutting-edge capping systems-including ROPP (Roll-On Pilfer Proof) Capping Machines, screw capping machines, and Pick-and-Place Screw Cappers—engineered for performance, precision, and durability.
Overview:
Shree Bhagwati Machtech presents its high-performance Automatic Pick and Place Chuck Capping Machine, engineered for precision, speed, and reliability. Designed to meet the capping requirements of diverse industries, this machine is ideal for sealing plastic or glass bottles with screw-type caps. Whether you are in pharmaceuticals, cosmetics, food, beverages, or chemicals, our capper ensures a tight, consistent seal every time.

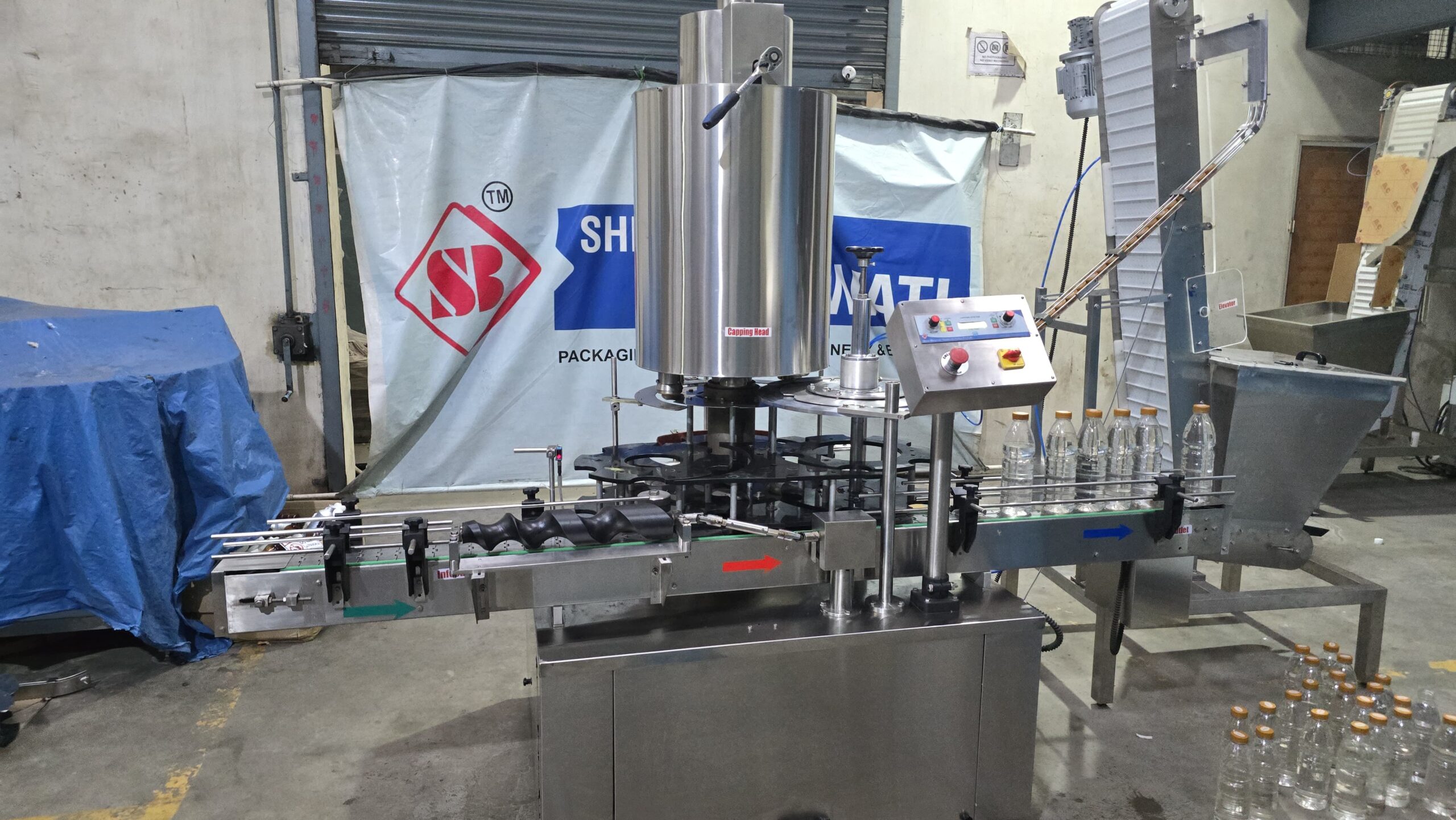

How Does an Automatic Pick and Place Screw Capping Machine Work?
An Automatic Pick and Place Screw Capping Machine performs three important operations: picking the correctly oriented cap, placing it precisely on the bottle neck and tightening it with controlled torque. This automated sequence helps manufacturers achieve consistent closure application while reducing manual handling and the possibility of tilted, loose or excessively tightened caps.
Filled bottles enter the machine through a powered conveyor and are guided towards the infeed star wheel. The star wheel creates uniform spacing between bottles and positions each container accurately beneath the cap placement and tightening stations. At the same time, an automatic cap-feeding system supplies properly oriented caps to the Pick and Place mechanism.
A pneumatic gripper picks one cap at a time and places it directly onto the bottle neck. Once the cap is positioned, the capping head applies the required tightening torque. The capped bottle is then transferred through the exit star wheel to the discharge conveyor for the next packaging stage.
This controlled process makes the machine suitable for pharmaceutical, cosmetic, food, beverage, chemical, household and personal-care packaging lines where accurate cap placement and dependable sealing are essential.
What is an ROPP Capping Machine?
ROPP (Roll-On Pilfer Proof) capping machines are designed to apply aluminum caps that are crimped and sealed onto the bottle neck without compromising the contents inside. These tamper-evident closures are widely used in pharmaceutical, liquor, nutraceutical, and chemical industries.
The Pick and Place Capping Machine, also known as a Pick and Place Screw Capper, complements this functionality by placing and torquing plastic or metal screw caps accurately, ensuring a leak-proof and aesthetically clean seal.
Automatic Bottle Capping Machine – Pick and Place Chuck Capper
Model Variants:
- Four Head Pick and Place Chuck Capping Machine
- Eight Head Pick and Place Chuck Capper
- Twelve Head High-Speed Pick and Place Capping Machine
- Rotary Bottle Screw Cap Machine
Advanced Capping Solutions for All Industries
We manufacture a comprehensive range of automated capping machines tailored for diverse applications, including:
ROPP Cap Sealing Machines
Pick-and-Place Screw Capping Machines
Snap-Fit & Press-Fit Capping Systems
Vial Cap Sealing
Trigger Spray & Pump Cap Cappers
Cup Placement Systems
Our modular designs are built for seamless integration into your existing production lines and come with PLC-based automation, servo control, and tool-less adjustments to ensure maximum uptime and flexibility.
Read Our Article
Benefits of an Engine Oil Filling MachineSupported Bottle Types, Shapes & Sizes
Our capping machines handle a broad range of containers, including:
Bottle Sizes
Small Bottles: 5ml, 10ml, 15ml – Common for eye drops, essential oils, injectables
Medium Bottles: 30ml, 50ml, 100ml – Used in syrups, lotions, tinctures
Large Bottles: 250ml, 500ml, 1 liter & more – Ideal for beverages, agrochemicals, oils
Bottle Shapes
Round Bottles – Standard across pharma, food, and beverages
Square & Rectangular Bottles – Cosmetic and chemical industry staples
Oval Bottles – Common in personal care products like shampoos and lotions
Custom Shapes – Unique designs for branded packaging solutions
Our capping heads and guides are easily adjustable to accommodate different shapes without changing the entire setup.
Compatible Cap Types
Our ROPP and screw capping machines are engineered to handle a diverse range of closures, including:
ROPP Caps: Aluminum tamper-evident roll-on caps (used in pharma, liquor, and healthcare)
Plastic Screw Caps: CRC caps, dome caps, continuous thread caps
Snap-Fit and Press-Fit Caps: Push-on closures for quick-seal applications
Spray & Pump Caps: Trigger sprayers, mist pumps, lotion pumps (Pick and Place)
Flip-Top Caps: Ideal for hand sanitizers, personal care products
Measuring/Dosing Caps: Agrochemicals and syrups
Dropper Caps / Euro Droppers: Tinctures and herbal oils
This wide compatibility ensures our machines can be used across various production environments without compromising performance.
Choosing the Right Automatic Cap Feeding System
Cap feeding plays an important role in maintaining the speed and continuity of an automatic bottle capping line. Because screw caps, CRC caps and special-shaped closures differ in diameter, height, material and orientation, the cap-feeding arrangement should be selected according to the actual closure design.
Depending on the application, a Pick and Place Screw Capper can be integrated with:
- Automatic cap elevator
- Cap orientation feeder
- Vibratory bowl feeder
- Cap hopper and delivery chute
- Customized cap-feeding system
For high-volume production, the cap hopper stores a continuous supply of closures. The elevator transfers the caps to an orientation mechanism, which rejects incorrectly positioned caps and sends properly oriented closures to the Pick and Place gripper.
A vibratory bowl feeder may be preferred for smaller or specially shaped closures that require controlled sorting and orientation. The correct feeder configuration helps minimize cap jams, incorrect placement and production interruptions.
Typical configurations include:
Cap Hopper → Cap Elevator → Orientation System → Pick and Place Gripper → Bottle
or
Cap Hopper → Vibratory Bowl Feeder → Cap Chute → Pick and Place Gripper → Bottle
The final selection should be based on cap diameter, cap height, cap geometry, production speed and the required orientation.
Our Other Product
Vial Capping Machine
Key Features of Shree Bhagwati Capping Machines
- Rotary Multi-Head Chuck System
Simultaneous capping of multiple bottles using 4, 8, or 12 rotary heads for high throughput. - Pick and Place Mechanism
Pneumatic or servo-driven arms pick caps from the bowl and place them accurately onto bottles. - Stainless Steel GMP Construction
Built for hygiene and durability, ideal for sterile environments. - Adjustable Torque Control
Ensures optimal tightening without damaging the cap or bottle. - Touchscreen HMI Interface
User-friendly control panel with real-time diagnostics and parameter settings. - No Bottle – No Cap System
Prevents cap wastage and ensures efficient operation. - Automatic Cap Feeding Bowl
High-speed feeding system to support continuous operation. - Tool-less Changeover
Enables rapid change of bottle or cap sizes, enhancing productivity.
Precision Star Wheel Bottle Handling
Accurate bottle positioning is essential for reliable Pick and Place capping. The machine uses synchronized infeed and exit star wheels to maintain uniform bottle spacing and position every container correctly beneath the cap placement and tightening stations.
Adjustable conveyor guide rails control bottle movement before the containers enter the star wheel. This arrangement helps prevent bottles from shifting, rotating or colliding during high-speed production.
The synchronized movement of the conveyor, star wheel and capping turret supports smooth transfer throughout the machine. An overload clutch protection system can also be incorporated to help protect bottles and machine components if a blockage occurs.
Precision star wheel handling is particularly useful for lightweight PET bottles, glass bottles and selected HDPE containers that require stable support during cap placement and tightening.
Controlled Torque for Consistent Bottle Sealing
Applying the correct capping torque helps maintain closure integrity and protects the bottle and cap from damage. If the torque is too low, the cap may remain loose and cause leakage. Excessive torque can damage cap threads, deform plastic closures or create difficulties when the consumer opens the bottle.
The adjustable torque system on an Automatic Screw Capping Machine allows the tightening force to be set according to the bottle, cap and packaging application. Controlled and repeatable torque supports consistent sealing across the production batch.
This capability is valuable for pharmaceutical syrups, cosmetic liquids, edible oils, household chemicals and other products where closure performance directly affects product protection, transportation and customer usability.
Industries We Serve
Our ROPP and screw capping machines are trusted by clients in:
- Pharmaceuticals: Tablet bottles, syrup bottles, dry powder containers
- Cosmetics & Personal Care: Lotion bottles, shampoos, hair oils
- Food & Beverages: Juice bottles, sauces, edible oil jars
- Agrochemicals & Chemicals: Pesticide bottles, industrial liquids
- Home Care Products: Cleaners, disinfectants, sanitizers
Product-Specific Applications of Pick and Place Capping Machines
The Pick and Place capping system can be configured for different bottle materials, closure types and production requirements.
Pharmaceutical and Healthcare Products
The machine can be used for syrup bottles, oral liquids, pharmaceutical solutions, nutraceutical products and healthcare preparations. Controlled cap placement helps maintain consistent packaging quality across regulated production environments.
Cosmetics and Personal Care Products
Shampoo, lotion, hair oil, skincare and other personal-care containers often use plastic screw caps or special-shaped closures. The Pick and Place system positions each closure accurately before applying the required tightening torque.
Food, Beverage and Edible Oil Products
The machine can handle bottles used for sauces, nutritional liquids, specialty beverages and edible oils. Smooth bottle handling and repeatable capping help maintain production continuity and reduce the possibility of closure damage.
Household, Chemical and Pesticide Products
Cleaning liquids, disinfectants, industrial chemicals, lubricants and pesticides may require secure and dependable closure application. The machine can be customized according to the chemical container, cap material and required torque.
Read Our Article
Benefits of an Engine Oil Filling MachineAutomation, Monitoring and Safety Controls
A modern PLC Controlled Pick and Place Capping Machine allows operators to monitor and adjust the capping process from a touchscreen HMI. Centralized controls simplify machine operation and help production teams respond quickly to operating faults.
Depending on the selected machine configuration, the control system may include:
- Machine start and stop controls
- Production-speed adjustment
- Bottle and cap detection
- No Bottle No Cap operation
- No Bottle No Capping operation
- Cap feeder monitoring
- Fault indication and alarm messages
- Capping-head adjustment
- Production monitoring
- Safety interlock monitoring
A No Bottle No Cap system prevents unnecessary cap discharge when a bottle is absent. Similarly, a No Cap Machine Stop arrangement can alert the operator or stop the machine when closures are unavailable.
Interlocked safety guarding restricts access to moving components while the machine is operating. These controls support safer operation, minimize packaging material waste and help maintain continuous production.
Global-Standard Manufacturing
Every machine manufactured by Shree Bhagwati is designed with automation, efficiency, and compliance in mind. Our facility is equipped with:
Precision fabrication & assembly systems
R&D-backed innovation labs
International-standard testing protocols
Export-grade packaging & documentation
Our machines are deployed in North America, Europe, Africa, the Middle East, Latin America, and Asia, enabling high-volume manufacturers to scale confidently with dependable equipment.
Integration with a Complete Bottle Packaging Line
The Automatic Pick and Place Screw Capping Machine can operate as an independent system or as part of a complete automatic bottle filling and packaging line. Its conveyor and controls can be synchronized with upstream and downstream packaging equipment.
A typical integrated line may include:
Bottle Unscrambler → Bottle Cleaning Machine → Filling Machine → Pick and Place Capping Machine → Induction Sealing Machine → Labeling Machine → Inspection System → Secondary Packaging
After filling, bottles move directly to the capping machine for closure placement and tightening. The capped bottles can then proceed to induction sealing, label application, visual inspection and final packing.
Integrated line configuration reduces manual bottle transfer and supports a more organized production flow. Shree Bhagwati Machtech can customize the capping machine according to the existing conveyor height, bottle direction, production speed, floor layout and other packaging-line requirements.
Why Choose Shree Bhagwati as Your Capping Machine Manufacturer?
✅ 25+ Years of Engineering Excellence
✅ Trusted by Global Pharma & FMCG Brands
✅ Customization as per Product and Line Requirements
✅ Post-Sale Support, Training & Spare Parts Availability
✅ Turnkey Integration with Filling, Labeling & Cartoning Systems
Global Presence:
Shree Bhagwati Machtech supplies Bottle Capping Machines to over 120 countries, including:
Asia & Middle East: India, UAE, Saudi Arabia, Iran, Bangladesh, Sri Lanka, Vietnam
Africa: Algeria, Nigeria, Kenya, South Africa, Egypt, Ghana
Europe: Germany, Italy, UK, France, Russia, Poland, Spain
Americas: USA, Canada, Argentina, Brazil, Mexico, Colombia
Oceania: Australia, New Zealand and many more.
Customized Capping Solutions for Different Bottles and Caps
Bottle and cap combinations vary considerably between pharmaceutical, cosmetic, beverage, chemical and household products. A standard machine configuration may therefore require modification to achieve reliable cap feeding, bottle handling and torque control.
Before recommending a machine, the following factors should be evaluated:
- Bottle material, including glass, PET or HDPE
- Bottle diameter, height and shape
- Cap type, diameter, height and material
- Required tightening torque
- Target production speed
- Cap orientation requirements
- Existing packaging-line layout
- Upstream filling equipment
- Downstream sealing and labeling equipment
Shree Bhagwati Machtech can engineer the Pick and Place capping system around actual bottle and cap samples. Change parts, star wheels, guide rails, capping heads and cap-feeding arrangements can be selected according to the specific packaging format.
This application-based approach helps manufacturers achieve smoother bottle movement, accurate cap placement, consistent tightening and easier product changeover.
Our Other Product
Top Labeling Machine – Top Side Sticker Labeling MachinesConclusion
Whether you are sealing ROPP caps on glass liquor bottles or applying mist pump caps on HDPE cosmetic containers, Shree Bhagwati’s ROPP Capping Machines and Pick-and-Place Screw Cappers offer unmatched reliability, flexibility, and performance. Backed by global certifications and world-class support, our solutions are the preferred choice for manufacturers seeking precision, speed, and durability in capping automation.
Contact us today to learn how our advanced capping systems can elevate your packaging operations.
