In the modern landscape of chemical and pharmaceutical engineering, the Rotocone Vacuum Dryer (RCVD)—often referred to as the Double Cone Vacuum Dryer—has solidified its position as an indispensable asset. As global manufacturing standards shift toward higher purity, environmental sustainability, and energy efficiency, the demand for high-performance drying systems is surging.
In 2026, the industrial dryers market is projected to reach over 6.37 billion dollars, with vacuum-based technologies leading the growth in high-value sectors such as Active Pharmaceutical Ingredients (APIs) and specialty chemicals. This article explores the working principles, technical capacities, and the evolving global demand for RCVD systems across major international markets.

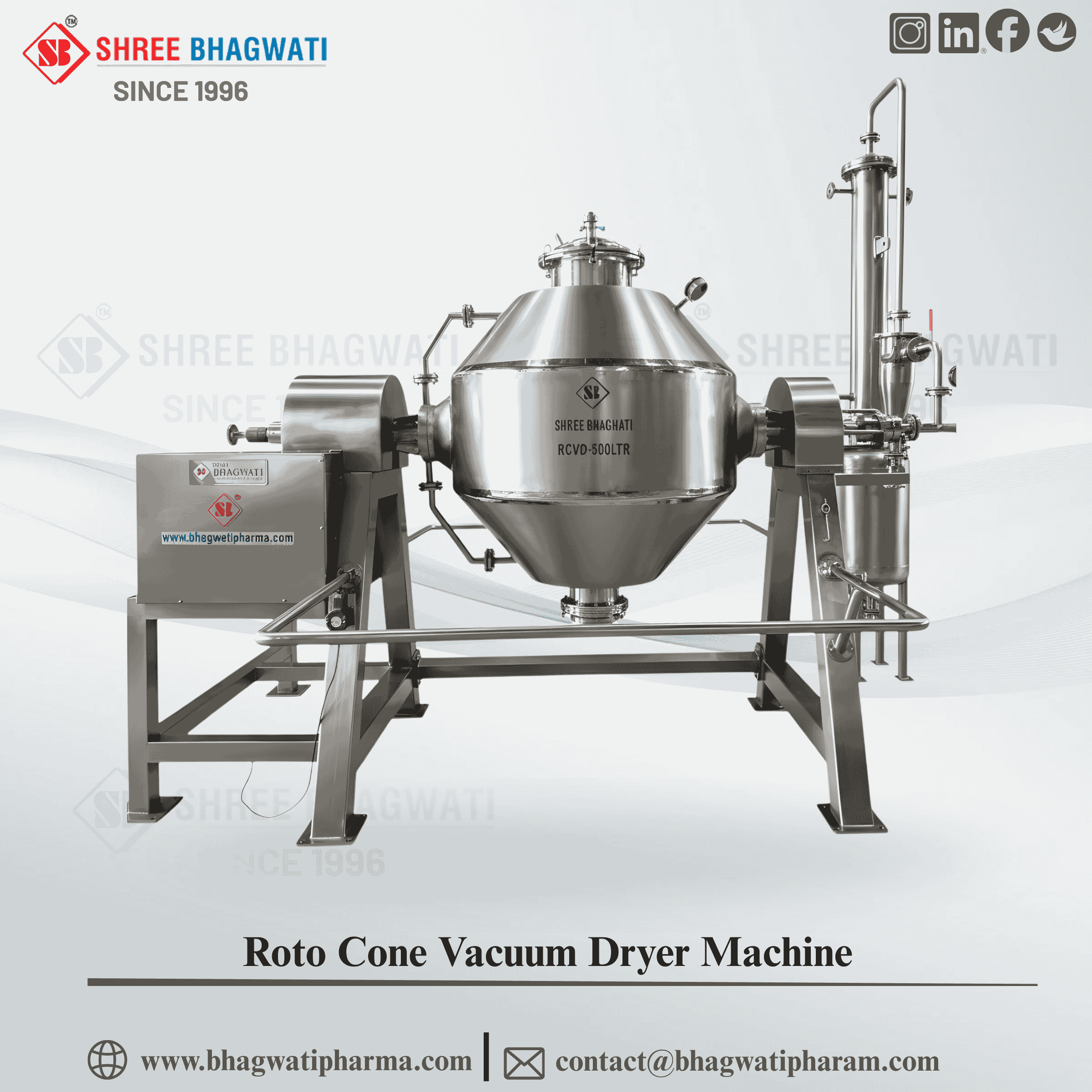

Technical Overview: The Efficiency of Double Cone Vacuum Drying
The Rotocone Vacuum Dryer is specifically engineered for drying wet powders and granules that are heat-sensitive, toxic, volatile, or prone to oxidation. By operating under high vacuum, the boiling point of the solvents is significantly reduced, allowing for moisture removal at lower temperatures.
Working Principle and Design
The system features a dual-cone rotating vessel mounted on trunnions and heated through an external jacket. As the vessel rotates, the material undergoes a gentle tumbling action, which shuffles the entire mass over the heated surfaces. This continuous movement exposes fresh surfaces to heat, thereby eliminating “hot spots,” preventing lump formation, and avoiding over-drying.
Key Salient Features
- Uniform Heat Transfer: The tumbling action ensures every particle comes into contact with the heated surface.
- Complete Solvent Recovery: Integrated cyclone separators (5 to 75 Liters) and condensers (0.5 to 6.0 square meters) allow for nearly 100 percent retrieval of hazardous solvents.
- cGMP Compliance: Designs feature a cGMP-compliant construction, mechanical shaft sealing for continuous high vacuum, and nitrogen pulse jet dust filters.
- Dust-Free Handling: Completely enclosed operation ensures a dust-free environment, ideal for crystalline and amorphous materials.
Global Market Demand: Regional Insights for 2026
The demand for Rotocone vacuum dryer systems is driven by the expansion of pharmaceuticals, agrochemicals, and advanced materials, sectors where exposure to high temperatures and atmospheric oxygen must be avoided.
- North America (USA)
The North American market, particularly the United States, remains a primary driver. With the pharmaceutical market continuing to grow, manufacturers are increasingly investing in Pilot Scale RCVDs (starting from 50 Liters) to support drug development. Technical support hubs, such as those in Schaumburg, Illinois, cater to the high demand for customized process requirements.
- Europe (Germany and UK)
Germany stands as Europe’s chemical hub. The demand here is focused on high-precision, ATEX-compliant designs for explosion-hazardous zones. European manufacturers prioritize sustainability; thus, the RCVD’s energy-efficient drying and maximum solvent retrieval align perfectly with current environmental mandates.
- Asia-Pacific (India and Indonesia)
India is a global leader in API production and agrochemicals, where RCVDs are a standard requirement. In Indonesia, the booming food and nutraceutical sectors are driving demand for dryers used in advanced material powders and food ingredients.
- Africa and UAE
In the UAE, the diversification into fine chemicals has created a new frontier for high-tech dryers. In Africa, the local manufacture of medicines is increasing, leading to a steady rise in the export of GMP-compliant RCVD systems.
Technical Specifications: RCVD Capacity Range
Choosing the right RCVD depends on the scale of production and the specific working volume required.
Model | Total Volume (L) | Working Volume (L) | Heat Transfer Area (sq m) | Main Motor (HP) |
RCVD 100 | 100 | 60 | 3.5 | 2 |
RCVD 500 | 500 | 300 | 6.0 | 5 |
RCVD 1000 | 1000 | 600 | 8.0 | 7.5 |
RCVD 2000 | 2000 | 1200 | 11.0 | 10 |
RCVD 3000 | 3000 | 1800 | 14.0 | 15 |
RCVD 5000 | 5000 | 3000 | 20.0 | 20 |
Advanced Options: Rotary Vacuum Dryer (RTSD) with Lump Breakers
For applications requiring enhanced mixing and lump-free discharge, the Rotary Vacuum Dryer with Lump Breakers (RTSD) is the preferred advanced option. This design features internal breakers that perform drying and size reduction in a single operation.
Highlights of RTSD:
- Integrated Size Reduction: Internal breakers eliminate lumps, producing free-flowing, homogeneous powder.
- Industrial Scale: Base cylinder diameters range from 1 meter to 3 meters.
- Efficient Mixing: Rotation speeds (starting at 12 RPM) ensure superior blending during the drying process.
System Integration: Mixing, Blending, and Size Reduction
To provide a complete process solution, RCVD manufacturers often integrate size reduction and mixing equipment:
- Mixing Equipment: Plough Shear Mixers, Ribbon Blenders, and Shovel Mixers are available in Lab, Pilot, and Industrial scales.
- Size Reduction: Integrated Lump Breakers, Shredders, and Crushers ensure the product meets final texture requirements before discharge.
Conclusion: Rotocone Vacuum Dryer Manfacturer (RCVD)
As global manufacturing becomes more safety-conscious and energy-focused, the Rotocone Vacuum Dryer stands out as a reliable and economical solution. Whether processing pharmaceutical intermediates, pigments, battery powders, or nutraceuticals, the RCVD ensures that heat-sensitive and toxic materials are handled without degradation.
With proven installations in the USA, UK, Germany, and across Africa, Bhagwati Pharma continues to lead as a manufacturer and exporter, bridging the gap between advanced material science and industrial drying efficiency.
