Industries dealing with powdered substances – especially hazardous ones – require meticulous safety measures during transfer operations. Whether it’s in pharmaceutical manufacturing, chemical processing or food production, the improper handling of hazardous powders can result in serious risks to operators, product integrity and overall workplace safety.
A vacuum conveying system offers a controlled, enclosed method of transferring these materials, reducing contamination and exposure risks. However, implementing this system without a clear understanding of its safety requirements may undermine its benefits. This guide explores how to ensure safety when using vacuum conveyor systems in the handling of hazardous powders, from design considerations to system operations and maintenance.
Understanding Vacuum Conveying Systems

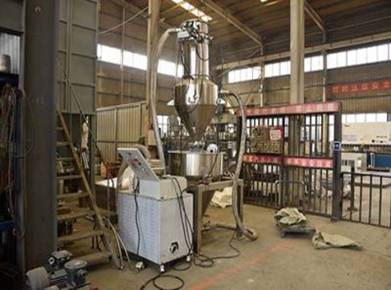

A vacuum conveying system uses vacuum pressure to move powders or granules through a closed pipeline. The system includes a suction point, transfer vessel, vacuum pump, filtration system and control panel, all working together to ensure that material moves efficiently and safely from one process to another.
Key Advantages of Vacuum Conveyor for Powder Handling
- Dust-Free Transfer: The enclosed system prevents particles from becoming airborne.
- Operator Safety: Limits direct contact with hazardous materials.
- Product Integrity: Maintains cleanliness and containment.
- Flexibility: Accommodates horizontal and vertical conveying with ease.
These advantages make the vacuum pneumatic conveying system ideal for materials that pose respiratory, chemical or explosive risks when exposed to air.
Identifying Risks in Hazardous Powder Handling
Powder transfer poses a range of safety hazards, especially when dealing with reactive or fine particulate substances.
Common Hazards Include:
- Inhalation Exposure: Fine powders can enter the respiratory system.
- Combustibility: Some powders can explode when suspended in air and ignited.
- Cross-Contamination: Residual powder from a previous batch may compromise the next.
- Environmental Spills: Leakage or equipment failure may lead to contamination.
A properly integrated pneumatic powder transfer system addresses these issues through engineered design, containment and automation.
System Design Considerations for Safety
To ensure maximum safety during operation, the vacuum conveying equipment must be designed with containment and process compatibility in mind.
Material Compatibility
System components must resist chemical corrosion and support hygiene. Stainless steel and food/pharma-grade polymers are commonly used.
Dense Phase Conveying
This method uses a higher product-to-air ratio, reducing dust dispersion. It is especially suitable for fragile or hazardous powders.
Sealed Connections
All joints, valves and gaskets are sealed to prevent leaks, ensuring a secure and compliant conveying process.
Filtration Systems
High-efficiency particulate air (HEPA) filters or regenerative filters trap fine particles, ensuring that dust does not escape into the workspace.
Implementing Automation and Control Systems
Automation enhances the safety and reliability of vacuum transfer systems by reducing human error and providing real-time process oversight.
Features of an Automated System Include:
- Programmable Logic Controllers (PLCs): Automate the flow, pressure and cycle times.
- Interlocks and Alarms: Prevent system operation during unsafe conditions (e.g., open vessel, pressure drop).
- Data Logging and Monitoring: Track performance metrics and identify abnormalities early.
- Remote Access: Allows operators to supervise from a safe distance.
These features create a proactive safety environment, significantly lowering operational risks.
Explosion Risk Management
Certain powders, particularly organic and metallic ones, can form explosive dust clouds when dispersed. Vacuum conveyor systems reduce this risk but should be equipped with explosion prevention mechanisms.
Explosion Mitigation Components
- Grounding and Bonding: Prevents static buildup, a common ignition source.
- Inert Gas Systems: Replace oxygen in the system with nitrogen to suppress combustion.
- Explosion Vents and Suppressors: Allow safe pressure release in case of an incident.
Cleanability and Contamination Prevention
In industries where product integrity is paramount, such as pharmaceuticals and food, vacuum conveying systems must support thorough cleaning.
Key Cleanability Features
CIP (Clean-in-Place): Automated internal cleaning using water or solvents.
Tool-Free Access: Quick disassembly for manual cleaning.
Smooth Surfaces: Prevent powder buildup and microbial growth.
Regular cleaning ensures no cross-contamination occurs, especially in multi-product facilities.
Routine Maintenance Protocols
Maintenance is critical to keep the pneumatic conveying systems operating safely and efficiently. A structured maintenance routine minimizes downtime and maximizes system life.
Maintenance Checklist
- Daily Inspections: Check vacuum levels, seals and filters.
- Weekly Checks: Inspect lines for residue buildup.
- Monthly Servicing: Calibrate sensors and clean valves.
- Annual Overhaul: Replace worn components and update software.
Training and Operational Safety
No system is truly safe without trained personnel. Operators must understand the fundamentals of the vacuum pneumatic conveying system, including emergency responses.
Training Should Include:
- Equipment startup/shutdown procedures
- Handling spills or leaks
- Using personal protective equipment (PPE)
- Recognizing signs of filter clogging or pressure anomalies
Scheduled training sessions refresh knowledge and ensure adherence to SOPs.
Integration and Flexibility
Vacuum transfer systems must integrate seamlessly into existing production lines. Versatility enhances both productivity and safety.
System Adaptations Include:
- Vertical or horizontal configurations
- Connection to mixers, blenders or reactors
- Material-specific flow rates
- Variable pressure settings based on particle size
Such modularity makes the system scalable and future-proof, accommodating new materials or processes.
Emergency Response Planning
Even the most reliable systems may face unforeseen failures. Preparation ensures that operators know how to respond quickly and correctly.
Emergency Protocols Should Cover:
- System-wide shutdown procedures
- Fire or explosion response
- Leak containment using powder-safe materials
- Evacuation drills and fire extinguisher training
Having these protocols in place limits potential damage and ensures regulatory compliance.
Vacuum Transfer System High-Speed, Efficient Powder Transfer Solutions
Standard Models & Capacity
| Model | Capacity (kg/hr) |
|---|---|
| VTS-200 | 200 kg/hr |
| VTS-300 | 300 kg/hr |
| VTS-500 | 500 kg/hr |
| VTS-700 | 700 kg/hr |
| VTS-1000 | 1000 kg/hr |
| VTS-2000 | 2000 kg/hr |
| VTS-3000 | 3000 kg/hr |
- Custom higher-capacity systems can be designed based on buyer requirements.
- Transfer speeds depend on the physical properties of the powder.
Applications
The Vacuum Transfer System is versatile and can be used for:
- Charging powders into Rapid Mixer Granulators (RMG), including inline sifting options.
- Wet mass transfer from RMG to Fluid Bed Equipment (FBE).
- Transfer from FBE to Dry Sizing Mill — inline transfer without removing the product bowl from the FBE tower using Shree Bhagwati Group Cyclonic Flow™ technology.
- Transfer from Sizing Mill to Blender.
- Charging product into tablet press machines or any equipment with vertical hopper intake design.
- Transferring product between different areas or heights within the facility.
Key Features & Notes
- All systems are equipped with mandatory Solid Flow Monitor (SFM) / Broken Bag Detector (BBD) sensors with interlock for enhanced safety.
- Filter cleaning methods:
- Candle filter types use a pulse jet cleaning system.
- Filter bag types use a bag shaking mechanism operated pneumatically.
- Use of imported food-grade, antistatic PU pipes for all transfer applications to ensure product safety and minimize static buildup.
- Systems can be made portable, allowing use across multiple machines where applicable.
- Entire system is manufactured in-house ensuring quality control and customization.
- Known for minimal product retention, high efficiency, and fast powder transfer speeds with fully automated operation.
Pneumatic Vacuum Conveying System – India Manufacturers & Suppliers
Discover high-quality Pneumatic Vacuum Conveying Systems from trusted Indian manufacturers and suppliers. Designed for efficient, dust-free material handling, these systems ensure smooth and continuous transfer of powders, plastic pellets, and granules across industries.
Features:
- Dust-Free Conveyor System: Minimizes powder leakage and contamination, maintaining a clean production environment.
- Continuous Vacuum Powder Conveyors: Enables uninterrupted, high-speed powder transfer with minimal product loss.
- Vacuum Plastic Pellets Loader & Plastic Vacuum Loader: Ideal for plastic processing industries to facilitate quick and hygienic pellet feeding.
- Vacuum Hopper Loader for Plastic: Automates material feeding directly into machines, boosting productivity.
- Vacuum Feeding Machine: Fully automated, compatible with a wide range of materials ensuring smooth and reliable operation.
- Competitive Factory Price: Get cost-effective pricing with reliable after-sales support from Indian factories.
- Customizable Solutions: Tailored designs to meet specific process requirements and capacities.
Applications:
Pharmaceuticals, plastics, chemicals, food, and other manufacturing sectors.
Conclusion
A vacuum conveying system provides an advanced, enclosed method to transfer hazardous powders without compromising safety or efficiency. But system design alone is not enough. Safe operation depends on a combination of proper installation, intelligent automation, preventive maintenance, staff training and strict regulatory adherence.
At Bhagwati Pharma, a leading manufacturer and supplier of Vacuum Conveying System, features and fostering a culture of safety organizations not only protect their workforce but also ensure consistent, high-quality output. Whether you work with chemicals, APIs or food ingredients, managing powder transfer safely using vacuum conveyor systems is both a responsibility and a strategic advantage.
